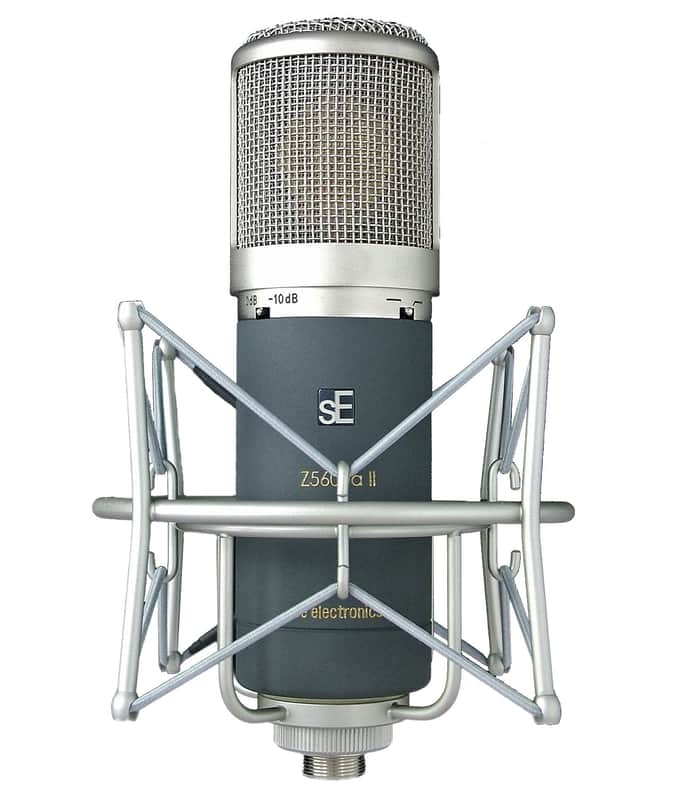

The Z5600a II large-diaphragm condenser is one of the most versatile tube mics in today's market. With 9 graded steps through omni, cardioid and figure eight patterns, -10dB pad and bass cut, the Z5600a II finds uses in a huge number of applications, from miking a live drum kit to overheads on a choir. Above all though, this excellent mic has won its praise on delivering superb vocal recordings, with natural warmth and incredible detail.

This beautiful mic comes in a wooden presentation case, cradled in a full aluminum flight case with a large shockmount and a brushed aluminum PSU with pattern switching and cables.

Technical Specifications

Capsule Type
Hand-Crafted True Condenser
Diaphragm
35mm Twin Gold/Mylar
Directional Pattern
Cardioid, Omni, Figure 8 and 5 intermediate stages (selectable on power supply)
Frequency Range
20 Hz - 20 kHz
Impedance
200 Ohms
Sensitivity
25.12 mV/Pa (-32 dB)
Max SPL
125/135 dB (0/-10 dB pad) (0.5% THD @ 1kHz)
Signal to Noise Ratio
76 dB
Self Noise
18 dB(A)
Pass Filter Switch
50 Hz
Preattenuation Pad
-10 dB
Power Requirement
Dedicated PSU (included)
Weight (mic)
795g / 28.04oz
Weight (PSU)
1459g / 51.47oz
Tube Complement
1x 12AX7/ECC83
Connectors
8-pin army connector to mic, XLR from PSU
