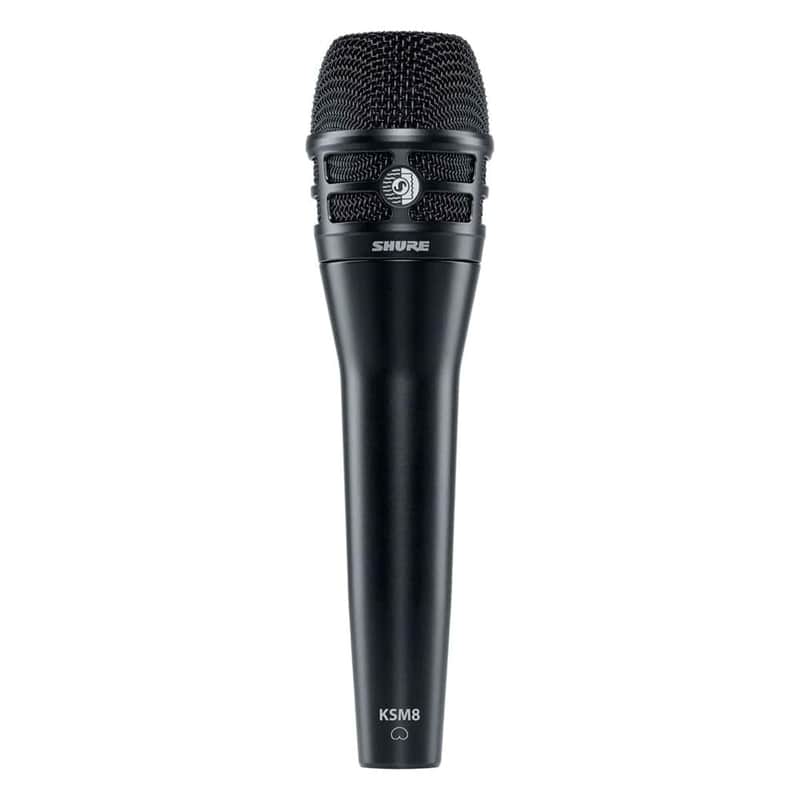

Dual Ultra-Thin Diaphragms Diaphragm Dynamic Handheld Microphone

The premium KSM8 Dualdyne Cardioid Vocal Dynamic Microphone is a groundbreaking feat of engineering design as the world’s first-ever dual-diaphragm dynamic handheld microphone. Meticulously crafted for revolutionary vocal reproduction and sound-reinforcement control for world-class live performance in top-tier professional venues. Featuring the single purest cardioid polar pattern that Shure has developed to date, the patented Dualdyne cartridge of the KSM8 virtually eliminates proximity effect and masters off-axis rejection while providing sound professionals the signal clarity typical of condenser microphones without processing, along with the reliability of dynamic microphone feedback control.

Key Features

• Patented cartridge design featuring two ultra-thin diaphragms (one active and one passive) and groundbreaking inverted airflow system.
• Exceptional control of proximity effect vastly increases working distance without on-axis coloration.
• Accurate frequency response due to controlled proximity effect which allows for neutral mid-and-high frequency reproduction, resulting in the most natural sounding dynamic microphone available.
• Off-axis attenuation is flat and broad resulting in superior quality of rejection of unwanted sound sources for increased vocal clarity.
• Advanced Pneumatic Shock Mount design for exceptional rejection of handling noise without any loss of low frequency response.
• Dent-resistant, hardened carbon-steel grille design lined with hydrophobic woven fabric provides exceptional plosive and wind protection, while offering virtually waterproof protection.

Technical Specifications

Cartridge Type
Dual-Diaphragm Dynamic (moving coil)
Frequency Response
40 to 16,000 Hz
Polar Pattern
Cardioid
Output Impedance
300 ohms
Sensitivity
at 1 kHz, open circuit voltage
-51.5 dBV/Pa (2.66 mV)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Net Weight
330 g (11.64 oz.)
Connector
Three-pin professional audio (XLR), male
Housing
Die-cast Aluminum with Paint or Brushed Nickel Finish
