Hi Z Mono Mic Line Inputs Integrated Feedback Suppressor Flex 9 Graphic EQ Class D Amplifier Mixer \n

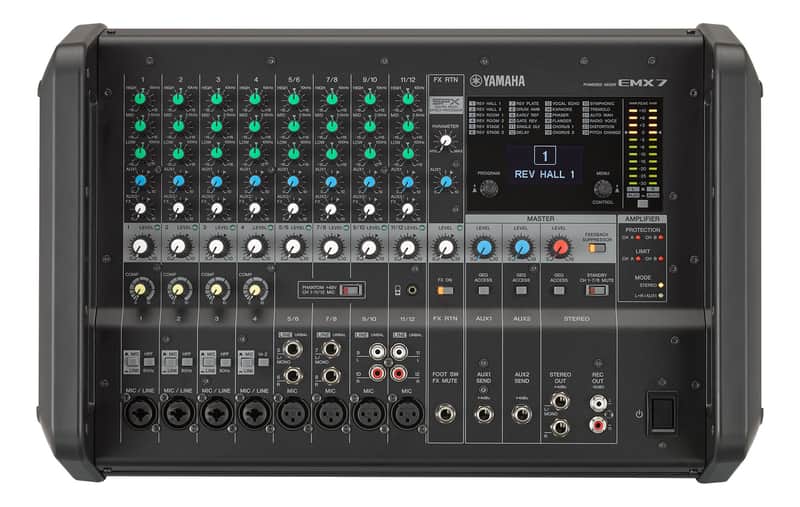

Box-type robust and portable powered mixer featuring dual 710W high efficiency power amplifiers and a 12 input mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor.

\n

Key Features

\n\n

\n
• 2x 710W [4ohm], 2x 500W [8ohm] (1kHz THD+N less than 10% CEA2006)
\n
• 2x 600W [4ohm], 2x 400W [8ohm] (1kHz THD+N less than 1% CEA2006)
\n
• Powerful & High Efficiency Class-D Amplifier
\n
• 12 Line Inputs (8 mono + 4 stereo)
\n
• High-Z input (channel 4) to connect guitars or basses directly
\n
• Flex 9 Graphic Equalizer
\n
• Onboard Feedback Suppressor
\n
• Comprehensive, professional 24 different effects
\n
• Yamaha Speaker presets
\n
• Metal chassis for extended operation and robustness
\n
• Large handles for extreme portability and protection
\n
• Universal power supply eliminates concern on power fluctuations
\n
• Optional rack-mount kit available
\n

\n

Technical Specifications

\n

I/O\nInputs:\nTOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)\nPhantom power:\n+48 V\nOutputs:\nSPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]\nControl and others:\nFOOT SWITCH : Effect Mute on/off\nBus:\nStereo: 1, AUX: 2 (Including FX)\nInput Channel Function\nPAD:\n30 dB (CH1-4)\nHi-Z:\nSupported (CH4)\nHPF:\n80 Hz, -12 dB/oct. (CH1-3)\nCOMP:\n1-knob COMP (CH1-4)\nEQ HIGH:\n10 kHz +15 dB / -15 dB (Shelving)\nEQ MID:\n2.5 kHz +15 dB / -15 dB (Peaking)\nEQ LOW:\n100 Hz +15 dB / -15 dB (Shelving)\nOn-board processors\nDSP:\nSPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor\nOn-board amplifiers\nMaximum output power @4ohms:\n1kHz THD+N less than 10% (CEA2006) : 710 W + 710 W, 1kHz THD+N less than 1% (CEA2006) : 600 W + 600 W\nMaximum output power @8ohms:\n1kHz THD+N less than 10% (CEA2006) : 500 W + 500 W, 1kHz THD+N less than 1% (CEA2006) : 400 W + 400 W\nLevel Meter:\n2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)\nFrequency response:\nInput to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz\nTotal harmonic distortion:\nInput to SPEAKERS: MIC/LINE =LINE (CH1-4): 0.1% @ 10 W (40 Hz to 20 kHz), 0.04% @ 65 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: MIC/LINE =LINE (CH1-4): 0.02% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)\nHum & noise level\nEquivalent input noise:\n-117 dBu (Noise is measured with A-weighting filter)\nResidual output noise:\nInput to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)\nCrosstalk:\n-85 dB (1 kHz, Measured with 1 kHz band pass filter)\nProtection circuit\nLoad protection:\nDC-fault\nAmplifier protection:\nOver heat protection, Over current protection, Integral power protection\nPower supply protection:\nOver heat protection, Over current protection\nPower requirements:\nAC 100-240V, 50Hz/60Hz\nPower consumption:\n45 W (Idle) / 250 W (1/8 Power)\nDimensions W x H x D:\n465 mm (18 5/16") x 308 mm (12 1/8") x 325 mm (12 13/16")\nNet weight:\n9.5 kg (20.9 lbs)\nAccessories:\nOwners Manual, Technical Specifications, AC power cord (2.5 m)\nOptions:\nFoot switch: FC5, Rack-mount brackets: RK-EMX7\nOthers:\nOperating Temperature : 0 to +40 Degrees Celcius
