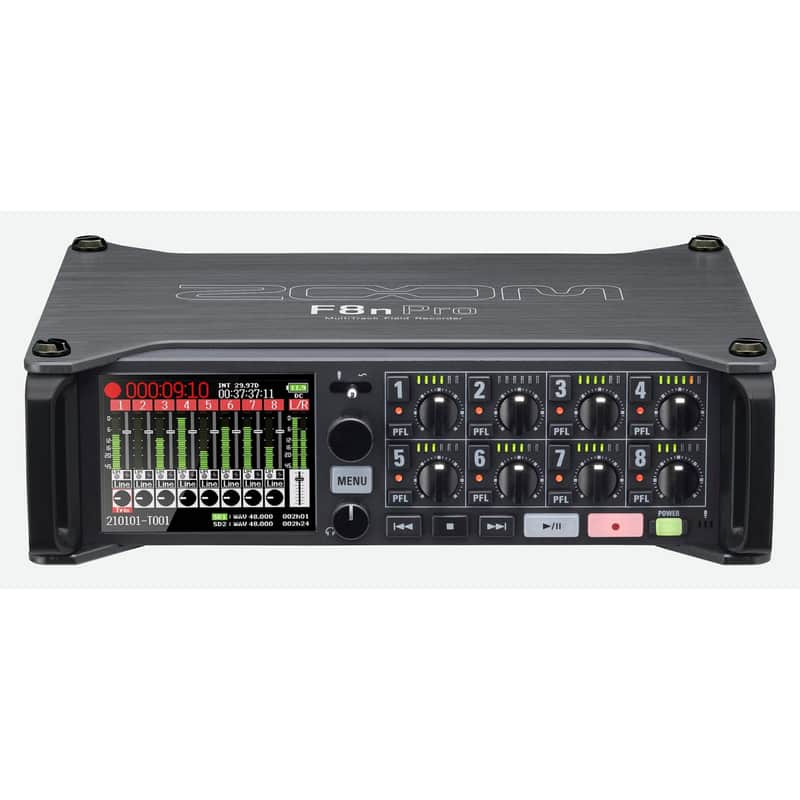

Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the F8n Pro’s 8 inputs capture full dynamic range using 32-bit float technology.\n\nWith 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.\n\n32-Bit Float is a game-changer. The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio - without ever needing to adjust gain!\n\nThe F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.\n\nThe F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.\n\nThe F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.\n\nKeep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy. Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound. The track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.\n\nKey Features\n

\n
• 32-bit float recording technology
\n
• 8-channel/10-track field audio recorder/mixer
\n
• Records in BWF-compliant WAV format up to 192kHz/32-bit float
\n
• 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
\n
• High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
\n
• Switchable +4dB inputs with mic/line options for both XLR and TRS
\n
• Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
\n
• Zoom AutoMix software
\n
• Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
\n
• High pass filter, phase invert, and mid-side decoder
\n
• Dual mini-XLR (TA3) balanced Main Outs plus 1/8†stereo mini-jack Sub Out
\n
• Dedicated headphone output (100 mW) with front panel volume control
\n
• 2.4†full-color backlit LCD with monochromatic mode
\n
• Dual SD/SDHC/SDXC card slots, up to 1 TB each
\n
• Use as an 8-in/4-out USB audio interface
\n
• Free Zoom F8 Control App for iOS and Android allows wireless remote control, file renaming, and metadata entry
\n

\nTechnical Specifications\n\nINPUTS\nINPUT 1 - 8\nConnectors\nXLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)\nINPUT SOURCE SET TO MIC\nInput gain\n+10 - +75 dB\nInput impedance\n3 kO or more\nMaximum input level\n+4 dBu (at 0 dBFS)\nPhantom power\n+24/+48 V, 10 mA maximum per channel\nEQUIVALENT INPUT NOISE\n-127 dBu or less (A-weighted, +75 dB input gain, 150 O input)\nFREQUENCY RESPONSE\n20 Hz - 60 kHz, +0.5 dB/-1 dB (192 kHz sample rate)\nA/D DYNAMIC RANGE\n113 dB typ. (-60 dBFS input, A-weighted)\nCROSSTALK\n-90 dB or less (between adjacent channels, 1 kHz)\nMIC IN\nZOOM mic capsule input (use disables Inputs 1/2)\nSLATE MIC\nBuilt-in mic for voice memos can be assigned to tracks freely\nOUTPUTS\nMAIN OUT 1/2  Connectors\nTA3 connectors (balanced output, 2: hot)\nOutput impedance\n150 O or less\nReference output level\n-10 dBV (normal output level)\n+4 dBu (line output level)\n1 kHz, 600 O load\nMaximum output level\n+10 dBV (normal output level)\n+24 dBu (line output level)\n1 kHz, 600 O load\nSUB OUT 1/2\nConnectors\n3.5 mm stereo mini (unbalanced output)\nOutput impedance\n100 O or less\nReference output level\n-10 dBV (normal output level)\n-40 dBu (mic output level)\n1 kHz, 10 kO load\nMaximum output level\n+10 dBV (normal output level)\nHEADPHONE\nConnector\n1/4-inch stereo (unbalanced output)\nOutput impedance\n18 O or less\nMaximum output level\n100 mW + 100 mW (32 O load)\nD/A DYNAMIC RANGE\n105 dB typ. (-60dBFS input, A-weighted)\nRECORDING MEDIA\nDual SD card slots\nSDHC cards\n4 GB - 32 GB\nSDXC cards\n64 GB - 1 TB\nRECORDING FORMATS\nWHEN WAV SELECTED\nSupported formats\n44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz\n16-bit linear, 24-bit linear and 32-bit float\nMono/stereo/2-10 ch poly\nBWF and iXML\nMaximum simultaneous recording tracks\n10 (8 inputs + stereo mix)\n8 (at 192 kHz sampling rate)\nWHEN MP3 SELECTED\nSupported formats\n128, 192 and 320 kbps\n44.1 and 48 kHz\nID3v1 tags\nMaximum simultaneous recording tracks\n2\nRECORDING TIME\nUsing a 32GB card\n23:08:00 (48 kHz/32-bit float stereo WAV)\n5:47:00 (192 kHz/32-bit float stereo WAV)\nTIMECODE\nConnector\nBNC\nModes\nOff, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)\nFrame rates\n23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D\nPrecision\n±0.2 ppm\nSupported input levels\n0.2 - 5.0 Vpp\nInput impedance\n4.6 kO\nOutput level\n3.3 Vpp\nOutput impedance\n50 O or less\nPOWER SUPPLIES\nAA batteries\n8 (alkaline, nickel-metal hydride or lithium)\nAC adapter\nZOOM AD-19, DC 12 V/2 A, center plus\nExternal DC power supply\nHIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9-18 V\nESTIMATED CONTINUOUS RECORDING TIMES\nTHESE VALUES ARE ONLY ESTIMATES\n2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32O headphones, PHANTOM OFF      Alkaline batteries: about 6 hours\nTHESE VALUES ARE BASED ON IN-HOUSE TESTING METHODS\nNiMH batteries (2500 mAh): about 8.5 hours\nTHEY WILL VARY GREATLY ACCORDING TO USE CONDITIONS\nLithium batteries: about 12 hours\n8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32O headphones, PHANTOM OFF\nAlkaline batteries: about 5 hours\nNiMH batteries (2500 mAh): about 7 hours\nLithium batteries: about 10 hours\n8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32O headphones, PHANTOM 48 V\nAlkaline batteries: about 0.5 hours\nNiMH batteries (2500 mAh): about 1.5 hours\nLithium batteries: about 2.5 hours\nDISPLAY\n2.4 inch full-color LCD (320 × 240)\nUSB\nConnector\nMini-B\nUse a USB cable that supports data transfer.\nUSB bus power operation is not supported.\nMASS STORAGE OPERATION\nClass\nUSB 2.0 High Speed\nMULTI TRACK AUDIO INTERFACE MODE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)\nClass\nUSB 2.0 High Speed\nSpecifications\nSampling rate\n44.1/48/88.2/96 kHz\nBit depth\n24-bit linear/32-bit float\n8-in/4-out\nSTEREO MIX AUDIO INTERFACE MODE OPERATION (NO DRIVER REQUIRED) SUPPORTS AUDIO INTERFACE OPERATION WITH IOS/IPADOS DEVICES\nClass\nUSB 2.0 Full Speed\nSpecifications\nSampling rate\n44.1/48 kHz\nBit depth\n16-bit linear\n2-in/2-out\nAUDIO INTERFACE OPERATION WITH RECORDING (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC)\nClass\nUSB 2.0 High Speed\nSpecifications\nSampling rate\n44.1/48 kHz\nBit depth\n24-bit linear/32-bit float\n10-in/4-out\nPOWER CONSUMPTION\n15 W\nEXTERNAL DIMENSIONS\n7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)\nWEIGHT: (INCLUDING BATTERIES)\n1200 g\nNOTE\n0 DBU = 0.775 VRMS
