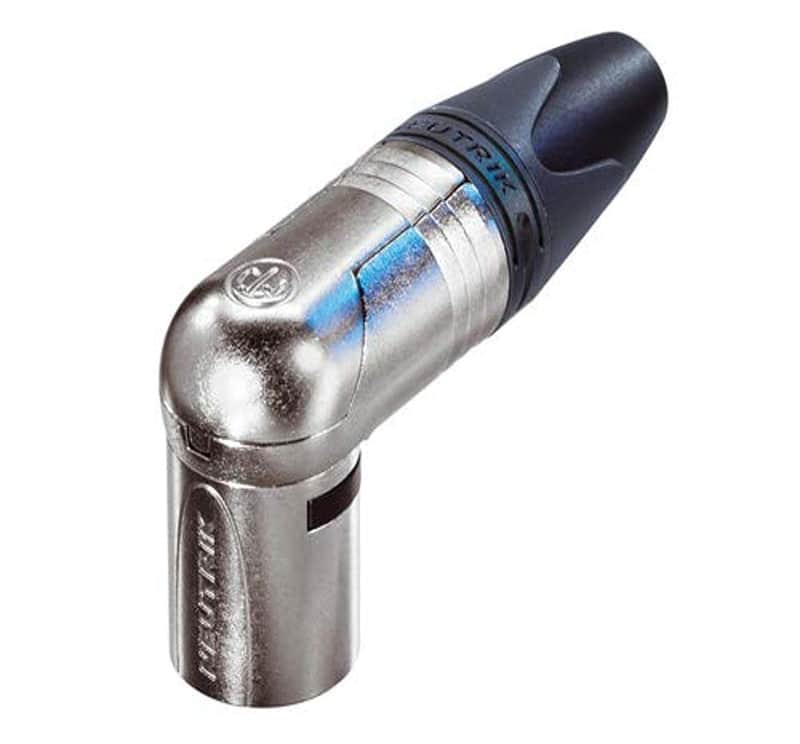

Neutrik NC3MRX Right Angle Male XLR Cable Connector 3 Pole Silver

Buy Over 9 units  in Bulk and Big Save!!

Neutrik NC3MRX Right Angle Male XLR Connector, The compact, low profile Neutrik NC3MRX is a right-angle connector with Neutrik's chuck-principle cable clamp. The NC3MRX is more reliable, easier to assemble and has improved contact integrity as well cable strain relief over previous models. The NC3MRX is a 3 pole right angle male cable connector with nickel housing and silver contacts. 7 x 45 degrees indexing.

Key Features

• Extra slim right-angle connector
• 5 selectable cable outlet positions
• Male connector with improved locking recess without window, more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Coloured rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy

Technical Specs

         Electrical

• Number of Contacts: 3
• Contact Resistance: ≤ 3 m Ohms
• Insulation Resistance:
  • Initial: > 2 G Ohms
  • After Damp Heat Test: > 1 G Ohms
• Dielectric Strength: 1500 V dc
• Rated Current: 16 A

  AWG:3 pole: 2.5 mm²/14 AWG

        Capacitance Between Contacts

• 3 pole: ≤ 4 pF

         Mechanical

• Lifetime: >1000 cycles
• Insertion / Withdrawal Force: ≤ 20 N
• Cable O.D. Range: 4.0 mm - 8.0 mm

          Materials

• Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
• Insert: PA 6.6 30% GR (glass reinforced)
• Contacts: CuSn6
• Contact Surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
• Latch Lock (female): St3K32
• Strain-relief Clamp: POM
• Antikink Bushing: PUR

          Environmental

• Temperature Range: -30° C to + 80° C
• Flammability: UL 94HB
• Solderability: Complies with IEC 68-2-20

          Compatibility / Remarks

• Compatibility: IEC tentative standard & Switchcraft® QG (except 6 pole) & Cannon XLR
