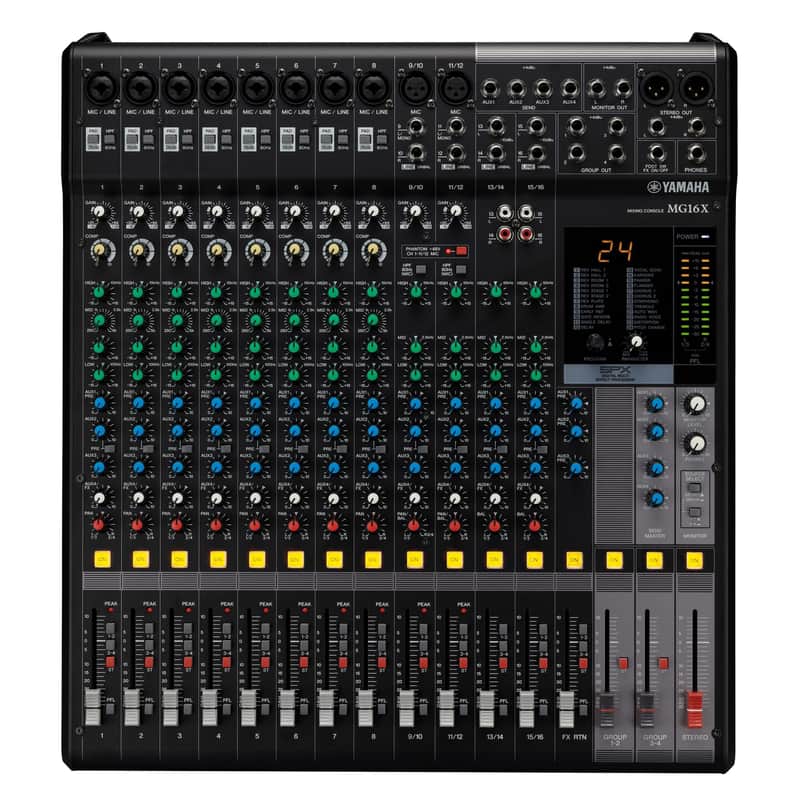

Housed in a rugged steel chassis, the MG16X CV can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are available.  The MG16X can accept XLR, ¼†Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG16X CV can be rack mounted (12RU) with the included rack ears.

Key Features

\n
• Rugged, Powder-coated steel chassis for superior durability
  \n
\n
• Discrete Class-A microphone preamps
  \n
\n
• Built-in SPX digital effects with 24 programs
  \n
\n
• Switchable +48V Phantom power
  \n
\n
• Color coded controls offer easy operation
\n

Technical Specifications

Frequency Response Input to STEREO OUT
\n Total harmonic distortion (THD+N) Input to STEREO OUT
\n 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
\n Input Channels Mono [MIC/LINE]
\n 8
\n Mono/Stereo [MIC/LINE]
\n 2
\n Stereo [LINE]
\n 2
\n Output Channels
\n STEREO OUT
\n 2
\n MONITOR OUT
\n 1
\n PHONES
\n 1
\n AUX SEND
\n 4
\n GROUP OUT
\n 4
\n Bus
\n STEREO 1
\n GROUP 4
\n AUX SEND
\n 4 (incl. FX)
\n Input Channel Function
\n Pad (Mono)
\n HPF (Mono, Mono/Stereo)
\n 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
\n Level Meter
\n Pre-Monitor Level Meter
\n Internal Digital Effect
\n SPX Algorithim
\n Phantom Power Voltage
\n Power Requirements
\n Power Consumption
\n 30W
\n Dimensions (W x H x D)
\n 444 mm x 130 mm x 500 mm (17.5†x 5.1†x 19.7â€)
\n Net Weight
\n 6.8 kg (15.0 lbs.)
