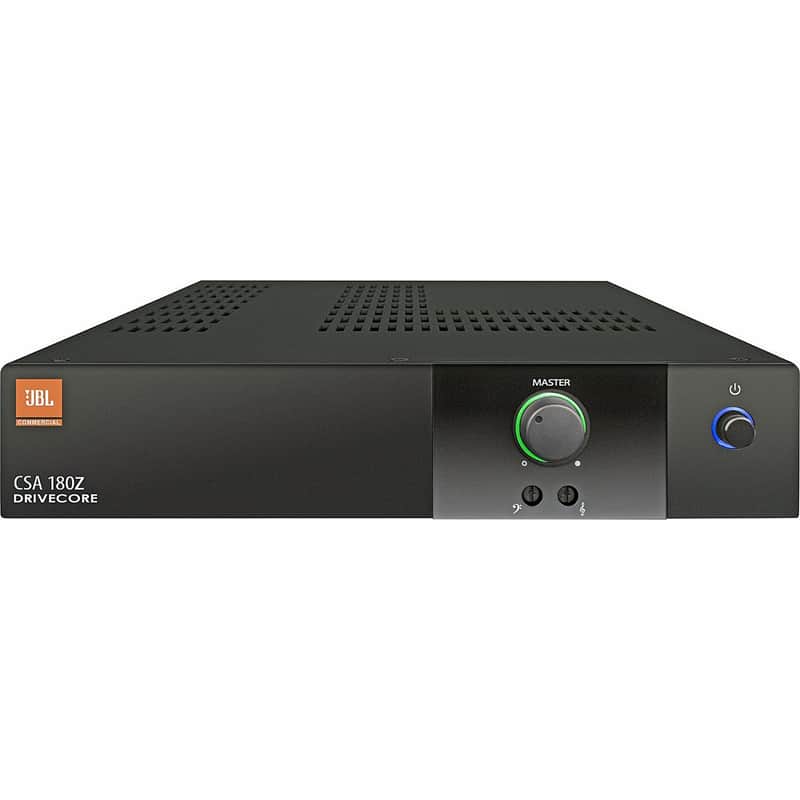

JBL CSA180Z | 80 Watt DriveCore Fanless Audio Amplifier

From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore Technology, we continue to set new standards in commercial power amplifier technology. Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.

Key Features

\n
• 1 or 2 output channels with 80W per channel
\n
• Built-in 70V and 100V
\n
• Fanless, space-saving 1U design
\n
• Sleep mode disable function
\n
• Energy-efficient amplifier
\n
• Sleek industrial look with illuminated rings making knobs easy to see and use
\n
• Supports the JBL CSR-V wall controller via Ethernet cable
\n
• Universal power supply
\n
• Energy Star Certified
\n

Technical Specifications

Power Output : 40W/80W/120W\nOutput Channels : 1\nInput Sensitivity : 1.4Vrms for 8-ohms\nPhantom Power : 27VDC\nAC Line Voltage : 100 - 240V, 50/60 Hz\nInput Impedance : 20K ohms/50K ohms\nDimensions : 1.7" x 8.6" x 11.9" (43.3mm x 218.5mm x 303.4mm)\nIncluded Accessories : Rack mounting kit
