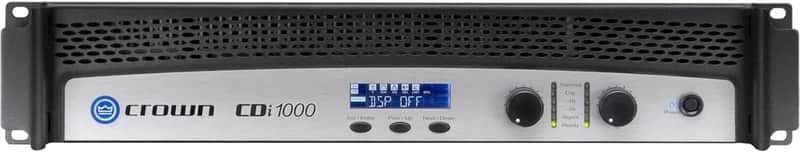

The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight, and offer unmatched value in their class.

Key Features

• Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs
• Switch-mode universal power supply
• Intuitive front-panel LCD screen for quick, easy configuration
• Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
• Up to 20 user defined DSP presets are available

Technical Specifications

Channels
2
Sensitivity (for full rated power at 8 ohms)
1.4V
Rated Power Output (per channel @ 4 ohms)
500W Stereo
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms)
100 dB (A-weighted)
THD
< 0.5%
Damping Factor (20 Hz to 400 Hz)
> 500
Frequency Response (at 1W, 20 Hz - 20 kHz)
+ 0 dB, -1 dB
Crosstalk (below rated power) 20 Hz to 1 kHz
>70 dB
Input Impedance (nominal)
20k ohms balanced, 10k ohms unbalanced
Dimensions
3.5" x 19" x 12.25"
Weight
22.0 lbs
IEC Power Connector
15A
