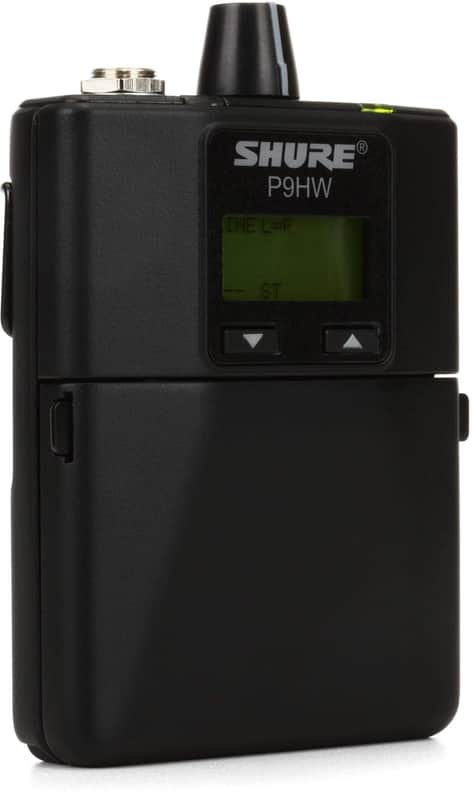

The P9HW is a wired, two-channel stereo personal monitor with individual mix controls. Listen to one or two channels of audio from the mixing console through earphones using MixMode technology to customize the mono blend. Stereo mode allows left / right balance adjustment for two mixes. Use the volume limiter to set the maximum volume adjustment range.

Key Features

\n
• Rugged, all-metal construction
\n
• LCD screen with menu-based navigation
\n
• Easy to adjust volume knob and mix control
\n
• 4-Band parametric EQ
\n
• Switchable line (+4 dBu) and aux (-10 dBV) input level
\n
• Power and battery status LED
\n
• 5-Segment battery life meter
\n
• Power-save mode and automatic power-off preserves battery life
\n

Technical Specifications

Audio Frequency Response\n20 Hz-20 kHz (±3 dB)\nSignal-To-Noise Ratio A-Weighted\n98 dB (typical)\nTotal Harmonic Distortion @ 1 kHz, typical\n<0.2%\nChannel Separation @ 1 kHz\n>55 dB\nOperating Temperature\n-18 deg C to +63 deg C\nMinimum Load Impedance\n9.5 ohm\nDimensions\n99 × 66 × 23 mm (3.9 in. × 2.6 in. × 0.9 in.) H × W × D\nNet Weight\n196 g (6.9 oz) (with batteries)\nBattery Life\n9 hours (continuous use) AA batteries\n[Audio Input]\nConnector Type\nLEMO\nConfiguration\nElectronically balanced\nImpedance\nLine: 45 k ohm\nAux: 66 k ohm\nNominal Input Level\nSwitchable: +4 dBu (Line), -10 dBV (Aux)\nMaximum Input Level\n+4 dBu (Line): +22 dBu\n-10 dBV (Aux): +12.2 dBu\nPhantom Power Protection\nUp to 60 V DC\n[Audio Output]\nConnector Type\n3.5 mm (1/8 inch)
