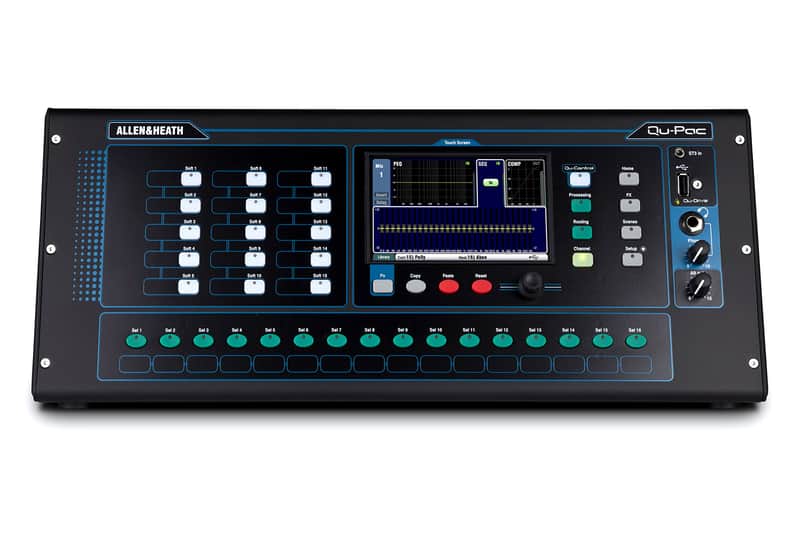

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format. Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen. With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint. User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

Key Features

\n
• 16 acclaimed AnaLOGIQ recallable preamps
\n
• 16 on-board Mic / Line Inputs (XLR / TRS)
\n
• Expandable up to 38 inputs via dSNAKE
\n
• 3 Stereo Inputs (TRS)
\n
• 32 Mono + 3 Stereo Input Channels
\n
• 12 on-board Mix Outputs (XLR)
\n
• 4 Stereo Groups
\n
• Up to 11 Monitor Mixes (4 mono + 7 stereo)
\n
• 2 Stereo Matrix Outs
\n
• AES Digital Out
\n
• 4 DCA Groups
\n
• 4 Mute Groups
\n
• Qu-Pad iPad App for all live mixing controls
\n
• Qu-You iPhone App for personal monitoring
\n
• Qu-Drive direct Multitrack Recording / Playback on USB drives
\n
• 15 Soft Keys
\n
• 16 Custom Select keys
\n
• Qu-Control custom screen to suit application
\n
• 4 FX Engines
\n
• 4 FX Sends / Returns
\n
• 32×32 USB Audio Interface
\n
• 5†Touchscreen
\n
• iLive FX Library
\n
• Automatic Mic Mixer
\n
• Compatible with ME Personal Mixing System
\n
• Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
\n
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
\n
• Built-in Signal Generator
\n
• RTA with Peak Band indication
\n
• Spectrogram to aid with feedback elimination and taming room acoustics
\n

Technical Specifications

Inputs : Balanced, XLR and 1/4" TRS jack, fully recallable\nMic/Line Inputs\nInput Sensitivity (XLR / TRS) : -60 to +5dBu / -50 to +15dBu\nAnalogue Gain : -5 to +60dB, 1dB steps\nMaximum Input Level (XLR / TRS) : +19dBu / +29dBu\nInput Impedance (XLR / TRS) : >5kO / >10 kO\nTHD+N, Unity gain 0dB : 0.0005% -89 dBu (20-20kHz, Direct Out @0dBu 1kHz)\nTHD+N, Mid gain +30dB : 0.001% -83dBu (20-20kHz, Direct Out @0dBu 1kHz)\nUSB Audio\nQu-Drive : USB A\nStereo Record : 2 channel, WAV, 48kHz, 24-bit, patchable\nStereo Playback : 2 channel, WAV, 44.1 or 48kHz, 16 or 24-bit, to ST3\nMultitrack Record : 18 channel, WAV, 48kHz, 24-bit, patchable\nMultitrack Playback : 18 channel, WAV, 48kHz, 24-bit\nDimensions & Weights\nDesk mounted : 440 x 180 x 181 mm (17.3" x 7" x 7")\nRack mounted : 483 x 174 x 181 mm (19" x 6.9" x 7") 4U\nPacked in shipping box : 620 x 310 x 310 mm (24.4" x 12.2" x\n12.2")\nUnpacked weight : 6.6 kg (14.5 lbs)
