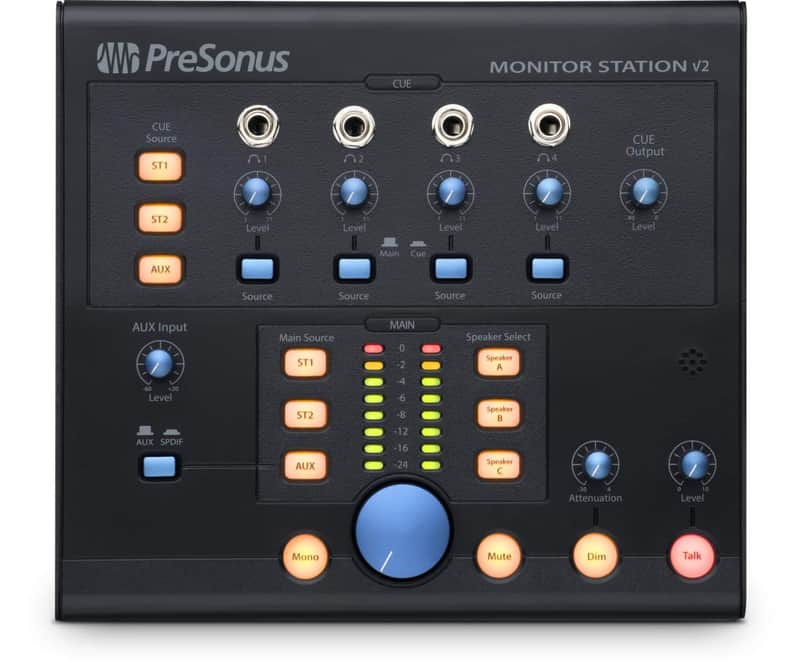

With Monitor Station V2, you can evict the drummer from the main room, banish the guitarist to the bathroom, shove the singer into a closet, and make them like it.

You can manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummerall from your desktop.

You can switch quickly and easily between up to four audio sources with a selection of input types.

You can audition your music with your choice of three stereo pairs of speaker outputs, each with separate level controland four screaming-loud headphone outs.

The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.

Key Features

• 2 Stereo pairs of ¼†TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of ¼†TRS speaker outputs with level controls
• 1 Stereo pair of ¼†TRS Main outputs
• 1 Stereo pair of ¼†TRS Cue outputs
• 4 ¼†TRS screaming-loud stereo headphone outputs
• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation
• 8-segment color LED input meters with selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and Talkback button
• Convenient desktop design

Technical Specs

Audio Inputs
Internal Talkback Microphone
Gain Range
+15 to +55 dB
Type
Electret condenser
Sensitivity
-42 dB
Stereo 1 and Stereo 2 Inputs
Type
¼†TRS Active Balanced
Input Impedance (Balanced)
10 k
S/N Ratio (1 kHz @ +10 dBu, Unity Gain)
>105 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain)
<0.0075%
Frequency Response (±0.5 dB)
10 Hz to 65 kHz
Noise Floor (20 Hz to 20 kHz, 150 input termination)
-96 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N)
+22 dBu
Auxiliary Inputs
Type
RCA Active Unbalanced
Input Impedance
47.5 k
S/N Ratio (1 kHz @ 0 dBu, Unity Gain)
>115 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain)
<0.01%
Frequency Response (±0.5 dB)
10 Hz to 50 kHz
Gain Range
80 dB to +10 dB
S/PDIF
Types
RCA
75 coax
Dynamic Range
113 dB
THD+N
0.0025% (1 kHz @ -1 dBFS)
Maximum output at 0 dBFS
+18 dBu
Sample Rates
44.1, 48, 88.2, 96 kHz
Input Meters (ST1, ST2, and Aux only)
Type
Dual 8-segment LED w/peak hold
Sensitivity Range
-24 dB to 0 dB
Audio Outputs
Type
¼†TRS Active Balanced
Output Impedance (Balanced)
51
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain)
<0.01%
Frequency Response (±0.5 dB)
10 Hz to 50 kHz
Speaker A, B, and C
Trim Range
-80 dB to 0 dB
Main Level Range
-80 dB to 0 dB
Dim Attenuation Range
-30 dB to -6dB
Cue
Cue Level Range
-80 dB to 0 dB
Dim Attenuation (Talkback activated)
-20 dB
Headphones
Type
¼†TRS Active Stereo
Maximum Output (60 load)
150 mW / channel
Frequency Response (±1.0 dB)
10 Hz to 50 kHz
Power
Power Supply Type
External DC Transformer/Internal Line
Input Connector Type
Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range
18 VDC
Power Requirements (Continuous)
10W
Physical
Dimensions
Height
2.5†(63.5 mm)
Depth
8.5†(216 mm)
Width
9†(228.6 mm)
Weight
6 lbs. (4.54 kg)
