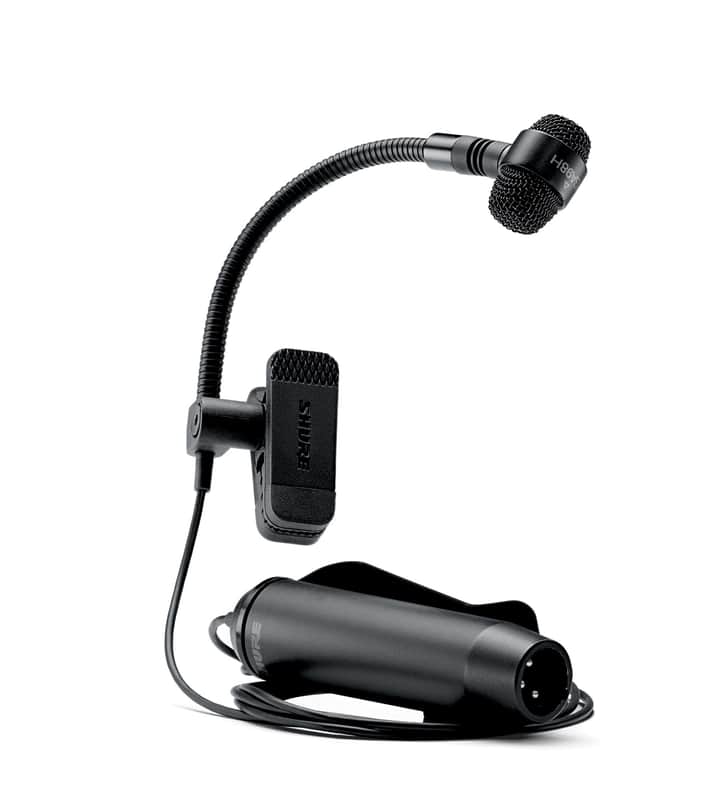

Shure PGA98H-XLR | Gooseneck Cardioid Condenser Instrument Microphone XLR-XLR Cable
This seller has not set a shipping cost for Hungary. Please contact them to ask about shipping.
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The PGA98H is a professional quality wind instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.
Additional features include a tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
Key Features
- Flexible gooseneck microphone with integrated preamplifier for wind instrument performance and recording
- Condenser cartridge (requires phantom power) with cardioid polar pattern
- Integrated horn clamp for quick and easy mounting
- Includes PGA98H (XLR wired or TQG wireless), zipper pouch and user guide
Technical Specifications
Option
PGA98H-XLR: XLR-XLR cable
Type
Electret condenser
Frequency Response
60 to 20,000 Hz
Polar Pattern
Cardioid
Output Impedance
850 ohm
Sensitivity at 1 kHz, open circuit voltage
-52 dBV/Pa (2.51 mV)
1 Pa=94 dB SPL
Maximum SPL
1 kHz at 1% THD, 1 k ohm
130 dB SPL
Self Noise, A-weighted, typical
27 dB SPL-A
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight
210 g (8 oz.)
Connector
PGA98H-XLR/PGA98H-LC: Three-pin professional audio (XLR), male
PGA98H-TQG: 4-pin, female TA4F miniature XLR connector
Housing
Cast Zinc
Power Requirements
11-52 VDC phantom power (2 mA)
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Categories | |
| Microphone Type |
|
| Wired/Wireless |
|
| Electronics |
|
| Polar Pattern |
|
Product safety information may be available here.
