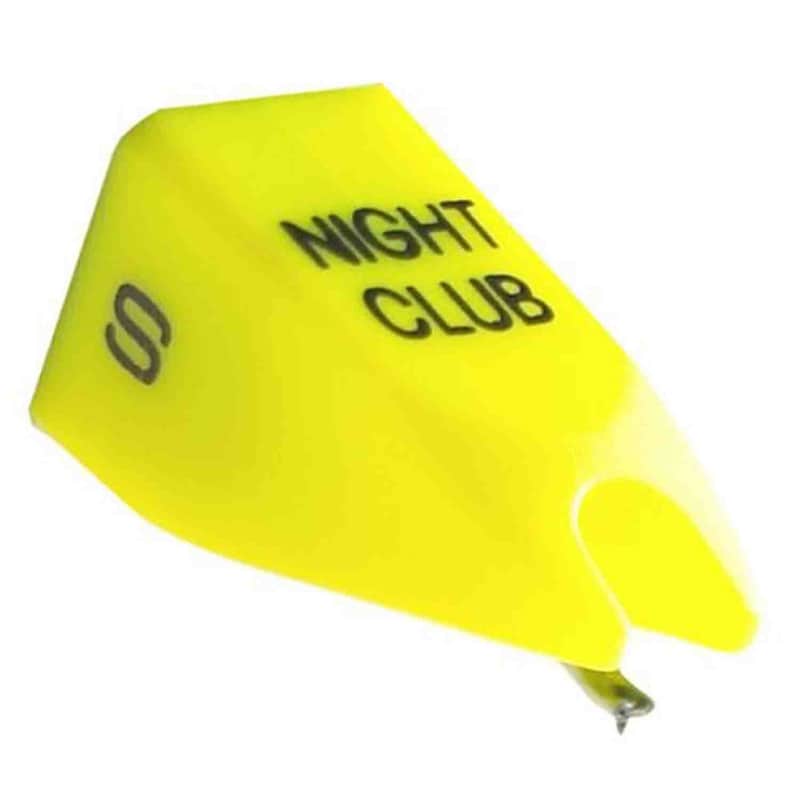

Ortofon Nightclub S Styli for Nightclub Original DJ Cartridges
This seller has not set a shipping cost for Ireland. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The Nightclub S stylus is amongst the top performers in its category, Scratch and Mix.
Key Features
- A spherical diamond and a customised design provide the basis for the cartridge's undeniable supremacy.
- The stylus remains in the groove during the scratching and back-cueing, making it unfailingly reliable - even when giving a night-long performance.
Technical Specifications
Output voltage at 1000Hz, 5cm/sec.
6 mV
Channel balance at 1kHz
1,5 dB
Channel separation at 1kHz
23 dB
Channel separation at 15 kHz
15 dB
Frequency range at -3dB
20-22.000 Hz
Frequency response
20-18.000 Hz +3 / - 2 dB
Tracking ability at 315 Hz at recommmende tracking force
80 um
Compliance, dynamic lateral
7 um/m N
Stylus type
Spherical
Stylus tip radius
R 18 um
Tracking force range
2,0-5,0 g (20-50 mN)
Tracking force recommended
3,0 g (30 mN)
Tracking angle
20 degrees
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
Product safety information may be available here.
