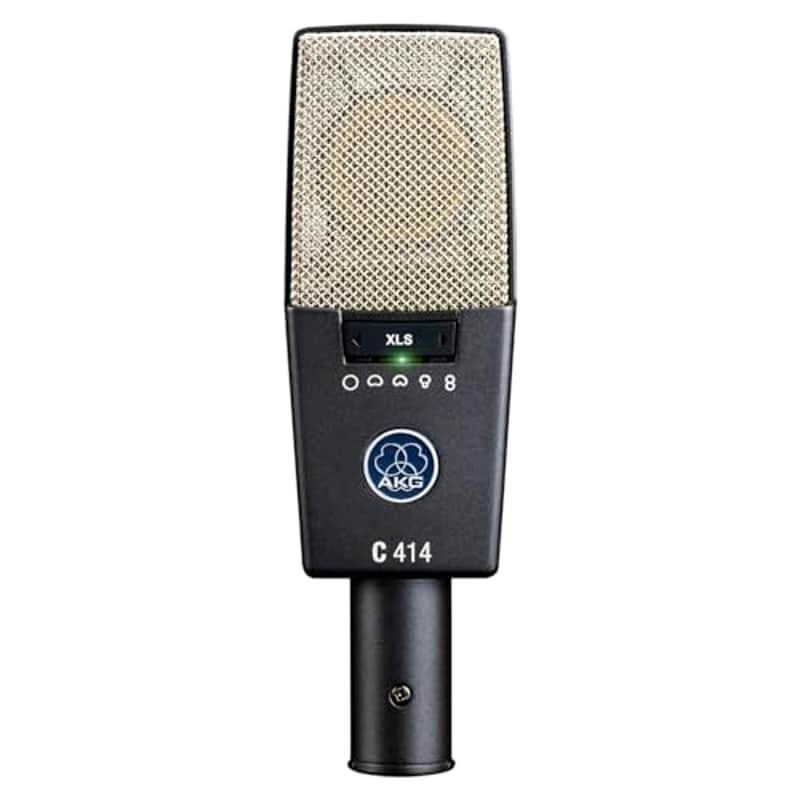

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live-sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

Key Features

• Engineered for highest linearity and neutral sound for beautifully detailed recording of vocals and any acoustic instrument
• Nine selectable polar patterns for the perfect setting for every application
• Three attenuation levels (-6/-12/-18dB) for close-up recording or high-output sources of up to 158dB SPL
• Three different switchable bass-cut filters to reduce wind noise, subsonic noise or proximity effect
• Overload warning with audio peak hold LED to detect shortest audio peaks

Technical Specifications

[General]
Audio Frequency Bandwidth
20 to 20000 Hz
Sensitivity
23 mV/Pa
Equivalent Noise Level
6 dB-A
Signal to Noise
88 dB-A
Preattenuation Pad
-6
-12
-18 dB
Bass Cut Filter
160
80
40 Hz
Electrical Impedance
200 Ohms
Recommended Load Impedance
2200 Ohms
Polar Patterns
Cardioid, Figure 8, Hypercardioid, Omnidirectional, Wide Cardioid
[Powering Interface]
Voltage
44 to 52 V
Current
4.5 mA
[Audio Output]
Type
Balanced XLR
Gender
Male
Contacts
3-pin
[Design]
Finish
dark gray/silver
[Dimensions / Weight]
Length
38 mm
Width
50 mm
Height
160 mm
Net Weight
300 g
