The guitar is a time-tested cornerstone of popular music. But to get your music out there, you need to record, right? Hook up your axe directly to pop’s present and future with the GUITAR LINK UCG102. It interfaces seamlessly with PC or Mac* operating systems and utilizes an ultra-low latency ASIO driver, so nothing gets in the way of you and your passion. The stereo headphone out lets you jam along with your tracks without disturbing the neighbors, or use it to hook up a pair of active monitors and get your friends in on the action!

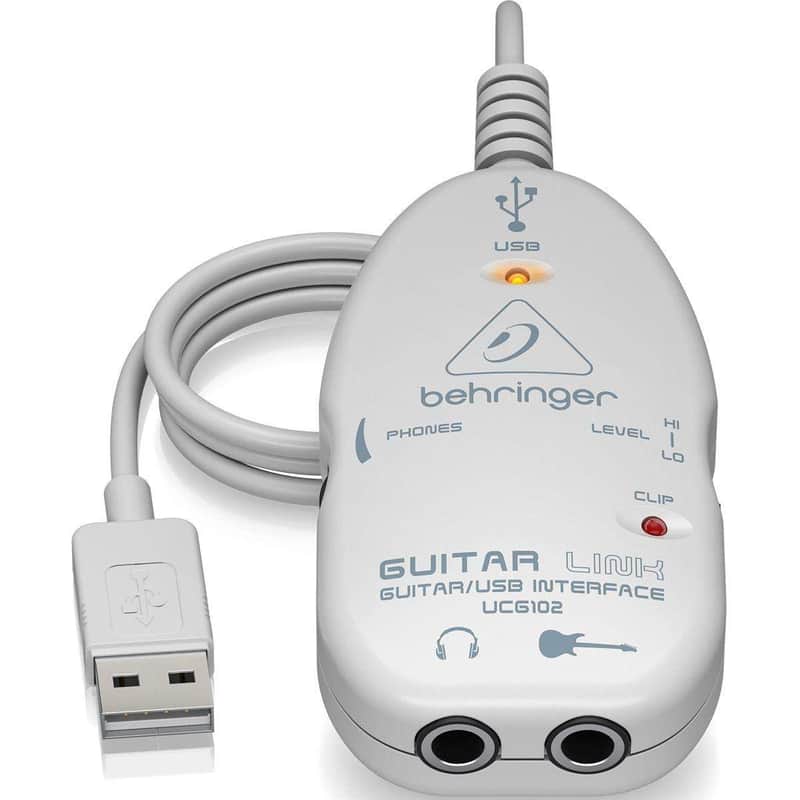

The UCG102 is a USB interface that, like a guitar amp, receives signal from your guitar via a 1/4 inch input jack. A built-in USB cable then sends the signal directly to your computer, where the amazing included software package simulates guitar amps and stomp boxes, in addition to tracking your latest masterpiece. It has a 1/4 inch headphone jack and Phones volume dial so you can monitor your performance as you record, a Clip LED to tell you when your signal is too hot, and a Hi/Lo level selector.

To truly get the most out of your UCA222, you will need recording and editing software. So, we made it easy, providing a single place for you to download lots of free software including:

Audacity is an easy-to-use audio editor and recorder for Windows, Mac OS X and Linux operating systems. With Audacity you can:

Record live audio
Convert tapes and records into digital recordings or CDs
Edit Ogg Vorbis, MP3, WAV or AIFF sound files
Cut, copy, splice or mix sounds together
Change the speed or pitch of a recording
And much more

Key Features

• Plug in your favorite guitar and turn your PC or Mac computer into a guitar amp and recording system without the need for any other hardware
• Opens up a world of free or commercial guitar amp and stomp box modeling plugins for your guitar sound (find reference links on behringer.com)
• Directly works with your PC or Mac computerultra-low latency ASIO driver for PC audio optimization available at behringer.com
• Connect the Guitar Link interface to the camera connection kit of your iOS device and enjoy jamming with countless guitar apps
• Stereo Headphone output lets you jam with your computer and can also be used for monitoring with active monitor speakers
• Powered via USB, no additional power supply required

Technical Specifications

[Guitar In]
Connector
1/4 inch TRS
Input Impedance (High)
250 k ohm
Input Impedance (Low)
400 k ohm
[Phones Out]
Connector
1/4 inch TRS
Output impedance
approx. 50 ohm
Max. Output Pegel
-2 dBu, 2 x 3.7 mW @ 100 ohm
[USB 1.1]
Connector
type A
[Digital Processing]
Converter
16-bit converter
Sample Rate
32.0 / 44.1 / 48 kHz
[Power Supply]
USB Connection
5 V, 100 mA max.
[Dimensions / Weight]
Dimensions (H x W x D)
approx. 1 x 2 x 3 3/4 inch
approx. 24.6 x 50.8 x 95.6 mm
Cable Length
approx. 5 9/10 inch / 15 cm
Weight
approx. 0.198 lbs / 0.09 kg
[System Requirements (PC / Mac)]
Operating System
Win XP / Win 7 / Win 8 /
Win 8.1 / Mac OS X
Processor Min. (PC)
Pentium 700 MHz /
Athlon XP 1.33 GHz
Processor Min. (Mac)
G4 733 MHz /
Intel Core Duo 1.66
RAM (PC)
256 MB
RAM (Mac)
512 MB
[Software]
Driver (Windows)
high-performance driver
BEHRINGER USB AUDIO for
Win 98 (SE) / ME / 2000 /
XP / Vista / Win 7 / Win 8 /
W i n 8 .1
Driver (Mac OS X)
Core Audio
