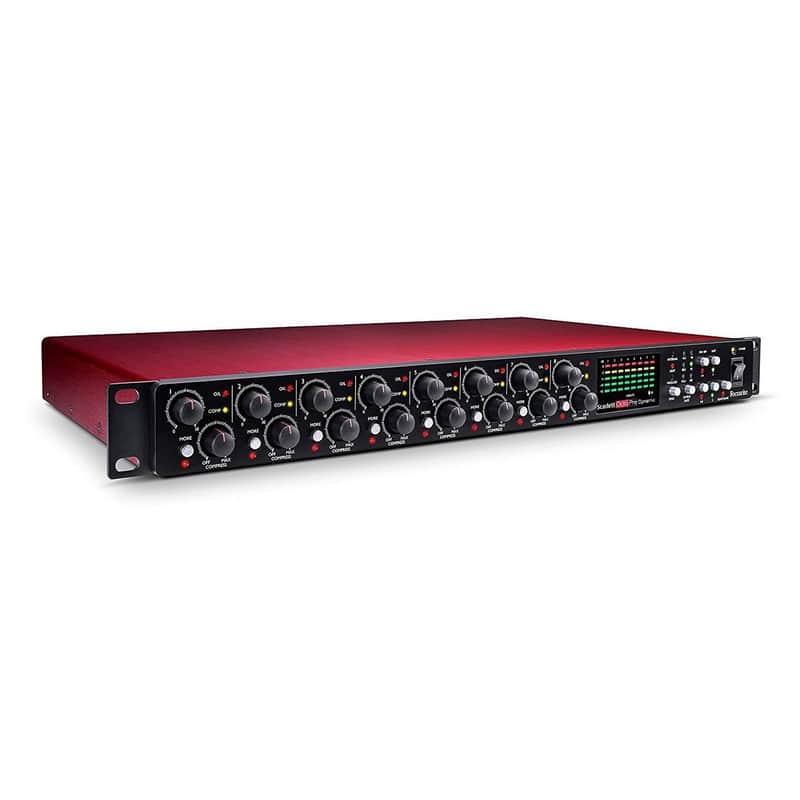

8-Channel Mic Pre Expansion with Analog Compression \n

Eight Scarlett mic pres\nBuilding on the features of the Scarlett OctoPre, Scarlett OctoPre Dynamic brings you the ultimate Scarlett expansion with eight Scarlett 2nd Generation mic preamps with analogue compression on every input channel providing a musical, soft-knee style of compression for more subtle control of dynamics. The "More" button then allows you to double the ratio for more aggressive compression effects.

\n

Focusrite precision A-D and D-A conversion\nEight channels of Focusrite precision A-D will capture your performance with clarity, honesty and transparency and providing you have an ADAT output on your interface, eight channels of D-A get it back out again via the balanced line outputs. With dual ADAT optical inputs and outputs, it's ideal for expanding your studio's I/O.

\n

Two high-headroom instrument inputs will handle high output guitar pickups. Don't forget to engage a bit of compression, great for controlling the dynamics of electric basses and guitars.\nScarlett OctoPre Dynamic is ideal for expanding any high quality, multi-channel recording system. With its high-headroom mic, line and dual instrument inputs, and analogue compression on every channel, it's ideal for tracking drums as well guitars, keyboards, vocals - and more.

\n

Expand the number of outputs in your studio\nScarlett OctoPre Dynamic's eight analogue outputs can be sourced either directly from the mic preamps for live use, or via the ADAT inputs to give you eight more analogue outputs channels from your DAW.

\n

About ADAT\nADAT is a simple and easy way of bringing extra channels of I/O to your system via optical cable. One light-pipe can carry up to eight channels of audio. Just connect the ADAT output on the OctoPre to the ADAT input on your interface, set your sample rate and clock source and you're ready to go. ADAT I/O is available on many Focusrite and third-party interfaces.

\n

Key Features

\n\n

\n
• Dual high-headroom Hi-Z instrument inputs
\n
• Ideal for recording the whole band
\n

\n

Technical Specifications

\n

Supported Sample Rates\n44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

\n

Microphone Inputs\nFrequency Response\n20Hz - 20kHz +0.5/-1.5dB\nDynamic Range\n107 dB (A-Weighted)\nTHD+N\n<0.002%\nNoise EIN\n-127 dBu\nMaximum input level\n+13 dBu\nGain Range\n50 dB\nInput Impedance\n3 k

\n

Line Inputs\nFrequency Response\n20Hz - 20kHz +0.5/-1.5dB\nDynamic Range\n107 dB (A-Weighted)\nTHD+N\n<0.002%\nMaximum input level\n+21 dBu\nGain Range\n50 dB\nInput Impedance\n64 k

\n

Instrument Inputs\nFrequency Response\n20Hz - 20kHz +0.5/-1.5dB\nDynamic Range\n107 dB (A-Weighted)\nTHD+N\n<0.015%\nMaximum input level\n+13 dBu\nGain Range\n50 dB\nInput Impedance\n1 M

\nLine & Monitor Outputs\nDynamic Range (Line Outputs)\n109 dB (A-Weighted)\nMaximum Output Level (0 dBFS)\n+16 dBu\nTHD+N\n<0.001%\nOuput Impedance\n136  (Balanced)
