Audio Interface Compatible with Any Lightning iPad

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

Certified by Apple and compatible with any Lightning iPad: iPad Pro, iPad mini, iPad mini with Retina Display, iPad (4th gen and up) and iPad Air.

Start recording the moment inspiration strikes, by plugging any instrument or mic straight in.

You don't need to learn anything new. Record your songs directly into Garageband, Cubasis, Auria and many other apps.

Whatever type of music you want to make, and whatever you want to record it on, iTrack Solo is the simplest way to do it.

Technical Specifications

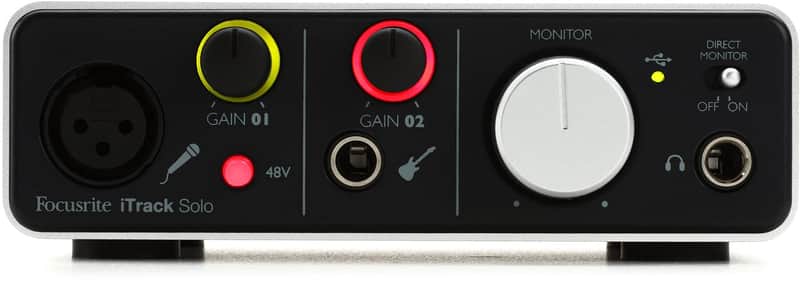

Front panel
1 microphone input - XLR
1 Instrument input 1/4 unbalanced
2 Gain knobs
2 Gain halo signal indicators
48V Phantom power switch
Direct monitor switch
Large monitor level dial (controls headphone and line level outputs)
USB Connection LED indicator
Headphone output 1/4 TRS Jack
Rear panel
2 unbalanced monitor outputs - RCA Phono
DEVICE LINK port (to connect iTrack Solo to iPad)
USB 2.0 Port
Kensington Lock slot
Included software
Ableton Live Lite 9 - professional music making software to use your iTrack Solo with a Mac or PC.
Focusrite Scarlett plug-in suite - collection of software plug-ins bringing effects to your music software (like Ableton Live for example).
Mic
Frequency Response: 20Hz - 20kHz +/- 0.2 dB
THD+N: < 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter)
Equivalent Input Noise (EIN): < -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter)
Gain Range: +10dB to +55dB
Max Input Level: +4dBu
Instrument
Frequency Response: 20Hz - 20kHz +/- 0.2dB
THD+N: 0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter)
Noise: -87dBu (22Hz/22kHz bandpass filter)
Gain Range: -10dB to +55dB
Max Input Level: +2dBu
Analogue Output Performance
Nominal Output Level 0dBFS = 10dBu, unbalanced
Frequency Response: 20Hz - 20kHz +/- 0.2dB
THD+N < 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)
Digital Performance
Clock sources Internal clock only
A-D Dynamic Range: 105dB 'A-weighted' (all inputs). Converter chipset A-D dynamic range 114dB
D-A Dynamic Range: 105dB 'A-weighted' (all outputs). Converter chipset D-A dynamic range 114dB
Supported sample rates: 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz - Mac and PC
44.1 KHz, 48 KHz - iPad
Crosstalk
Input to Input Better than 90dB
Output to Output Better than 90dB
Input to Output Better than 85dB
Input Metering
Ring LED lit Green Signal present (-24 dBFS)
Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second
Weight and Dimensions
Height: 45 mm / 1.77'
Width: 150 mm / 6'
Depth: 100 mm / 4'
Weight: 500 g / 1 lb
In the box
iTrack Solo
1.2m USB cable
1.2m "DEVICE LINK" cable (to connect to a 30 pin iPad)
Getting started guide
Registration card
Download card for Ableton Live Lite / Scarlett Plug-in Suite
USB power supply (US only)
Compatible iPads
iTrack Solo Lightning: Any iPad with Lightning connector.
