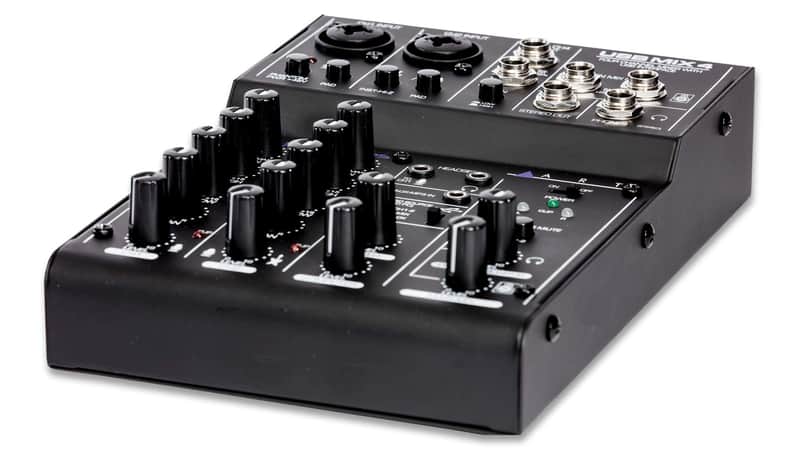

The ART USBMix4 is a great starting point for building a personal home studio. Perfect for podcasters, songwriters or at home movie makers looking for a simple solution for recording voiceovers, location recording or adding music to your projects using any Mac or PC.

Key Features

• High Performance Low Noise Design

• Switchable +48v Phantom Power (CH1 & CH2)

• Assignable USB Record Source

• Independent Level Controls for Main and Headphone/Monitor Outputs

• 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)

• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC

• Operates on USB Power or 5VDC External Power Supply (Included)

Technical Specifications

Input Connections
XLR & 1/4-inch Balanced Combi-jack (CH 1 & CH2)
1/4-inch TRS Balanced (CH3 & CH4)
1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic
Output Connections
1/4-inch TRS Balanced Main Mix Outputs
1/4-inch TRS Stereo Output & Monitor Outputs
1/8th-inch Headset Output
Signal to Noise Ratio
>90dB Typical (Ref 0dBu)
Maximum Input Level
+8dBu (Mic), +16dBu (1/4-inch Input)
Maximum Output Level
+15dBu Main Mix Outputs
Maximum Gain
>55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
USB Computer Interface
USB Class Compliant plug-and-play Mac / PC Interface
Power
Via USB or 5VDC @ 500mA
Dimensions
1.75â€H x 5.1â€W x 7.5â€D (45mm x 130mm x 191mm)
