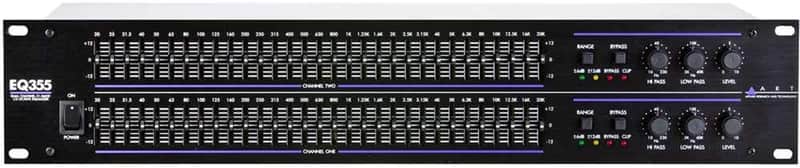

The ART EQ300 Series of graphic equalizers have been designed and engineered to extremely high standards for audio performance and functionality. These innovative, high-quality equalizers are perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make these equalizers particularly well suited to fixed installation as well as touring live sound systems.

Key Features

• Dual Channel 31-Band Graphic Equalizer

• Balanced XLR, Active Balanced 1/4â€, and Unbalanced RCA Input and Output Connectors

• Independent Level and Bypass Controls Per Channel

• Rugged All Steel Construction

• Constant-Q Filtering

• Variable High-Pass and Low-Pass Filters

• 20mm Center Detented Frequency Band Sliders

Technical Specifications

Filter Type
Constant Q - 3% center accuracy
Frequency Bands
31, 1/3 octave, ISO spacing
Frequency Response
20Hz to 20kHz, +0.5dB
High Pass Filter
10Hz to 250Hz, 12dB/oct
Input Impedance
20k (bal), 15k (unbal)
Input/Output Connections
Active balanced XLR and 1/4†TRS {XLR pin 2, 1/4†tip = Hot (+)} Unbalanced RCA
Low Pass Filter
3kHz to 40kHz, 12dB/oct
Maximum Input Level
+22dBm
Maximum Output Level
+18dBm (bal), +22dBm (unbal)
Power
(Switchable) 95-130VAC, 50/60Hz, 22 W (USA)
Range
+/-6dB or +/-12dB selectable
Signal to Noise Ratio
-94dB
Slider Travel
20mm w/ positive center detent
Total Harmonic Distortion
0.0001
Warranty
One Year
Dimensions
3.5â€H x 19†W x 8.5†D
Weight
9.0lbs (4.1kg)
