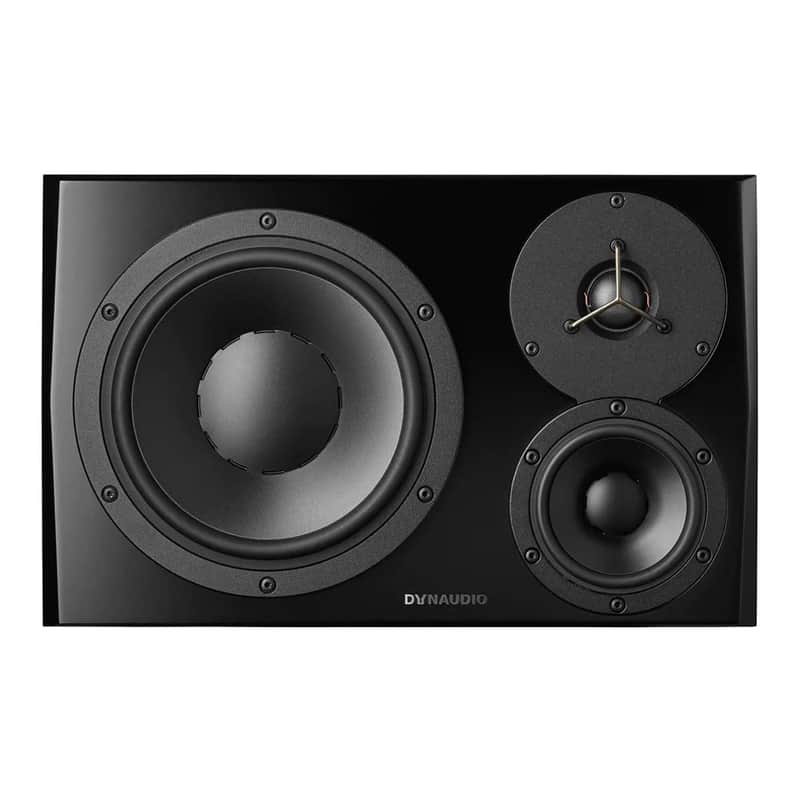

Dynaudio LYD 48 3-Way Midfield Monitor, Right, Black
Free Shipping
from Santa Fe Springs, CA
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.
Technical Specifications
Max SPL (1m, pair)
112dB
Principle
Bass reflex
Crossover Frequencies
460Hz / 5.5kHz
Tweeter
1in soft dome
Midrange
4in
Woofer
8in
Dimensions (W x H x D)
369 x 234 x 328mm
Weight
12kg
Sensitivity (85dB @ 1m, free field)
+6dB: 50mV
0dB: 100 mV
-6dB: 200 mV
Power (Tweeter/Midrange/Woofer)
50W/50W/80W
Type
Class D
Power consumption standby
<0.5W
Power consumption max.
100W
Input voltage
90 - 264V AC, 50 - 60Hz
Inputs
XLR balanced/RCA unbalanced
Outputs
N/A
Frequency response -6dB limits
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response
50Hz - 19kHz
Frequency response -10dB limits
Bass extension +10Hz: 52Hz - 24kHz
Bass extension 0Hz: 42Hz - 24kHz
Bass extension -10Hz: 32Hz - 24kHz
