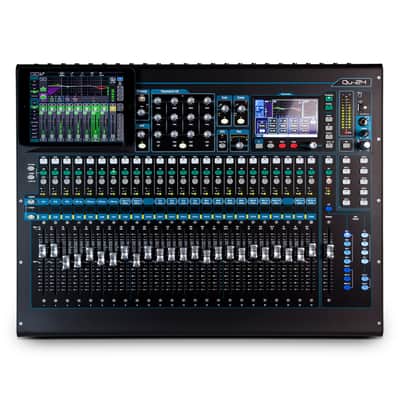

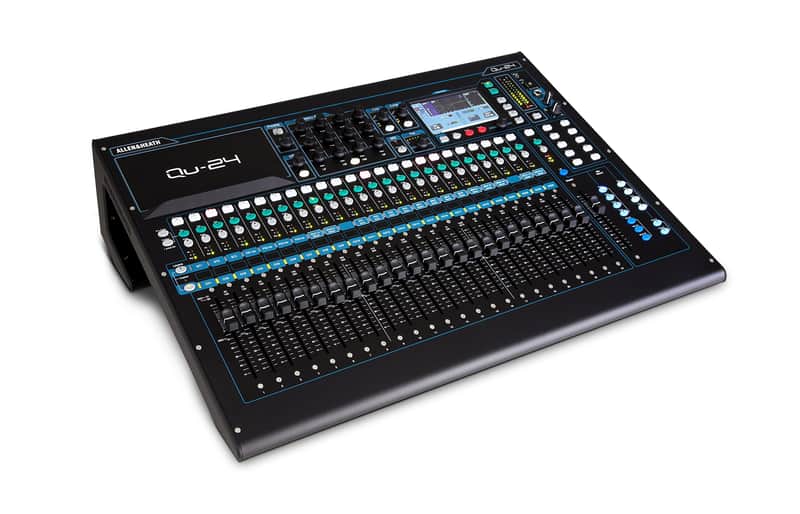

With its responsive touchscreen, 25 motor faders and acclaimed AnalogiQ recallable preamps, Qu-24 combines exceptional ease of use with class-leading audio performance.

Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems, Qu makes Allen & Heath digital mixing more accessible and more compact than ever.

Qu V1.8 Chrome firmware adds hot new features, including Automatic Mic Mixing, more monitor mixes and a Spectrogram for feedback-hunting. Qu Chrome Edition models will also feature upgraded, high contrast metallic finish controls.

Key Features

• 24 Mic / Line Inputs (TRS + XLR)
• 25 Motor Faders
• 3 Stereo Inputs (TRS)
• 4 Stereo FX Returns
• 20 Mix Outputs (XLR)
• 2 Stereo Groups (switchable to Mix mode)
• Up to 9 Monitor Mixes (4 mono + 5 stereo)
• 2 Stereo Matrix Outs
• 4 Mute Groups
• 4 FX Engines
• 4 FX Sends / Returns
• 10 Soft Keys
• USB Audio Streaming
• DAW MIDI Control
• AES Digital Out
• Recallable AnaLOGIQTM Preamps
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 800×480 Touchscreen
• iLive FX Library
• dSNAKETM Remote Audio Port
• Automatic Mic Mixer
• Compatible with ME Personal Mixing System
• Qu-Pad iPad App
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
• Spectrogram to aid with feedback elimination and taming room acoustics
• High contrast metallic finish controls, matching premium GLD Chrome series

Technical Specifications

Mic/Line Inputs
Balanced, XLR and 1/4 inch TRS jack, fully recallable
Input Sensitivity (XLR / TRS)
-60 to +5dBu / -50 to +15dBu
Analogue Gain
-5 to +60dB, 1dB steps
Maximum Input Level (XLR / TRS)
+19dBu / +29dBu
Input Impedance (XLR / TRS)
>5k ohm / >10 k ohm
THD+N, Unity gain 0dB
0.0005%  -89 dBu (20-20kHz, Direct Out @0dBu 1kHz)
THD+N, Mid gain +30dB
0.001%  -83dBu (20-20kHz, Direct Out @0dBu 1kHz)
Mix1-10 and LR Out
Balanced, XLR
Stereo Alt Out & 2Trk Out
Balanced, 1/4 inch TRS jac
AES Digital Output
2 channel, 48kHz sampling rate, XLR
2.5Vpp balanced terminated 110 ohm
System
Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
Desk Mounted Dimensions (WxDxH)
26.4 x 31.1 x 13.8 inches
Weight
40 lbs
