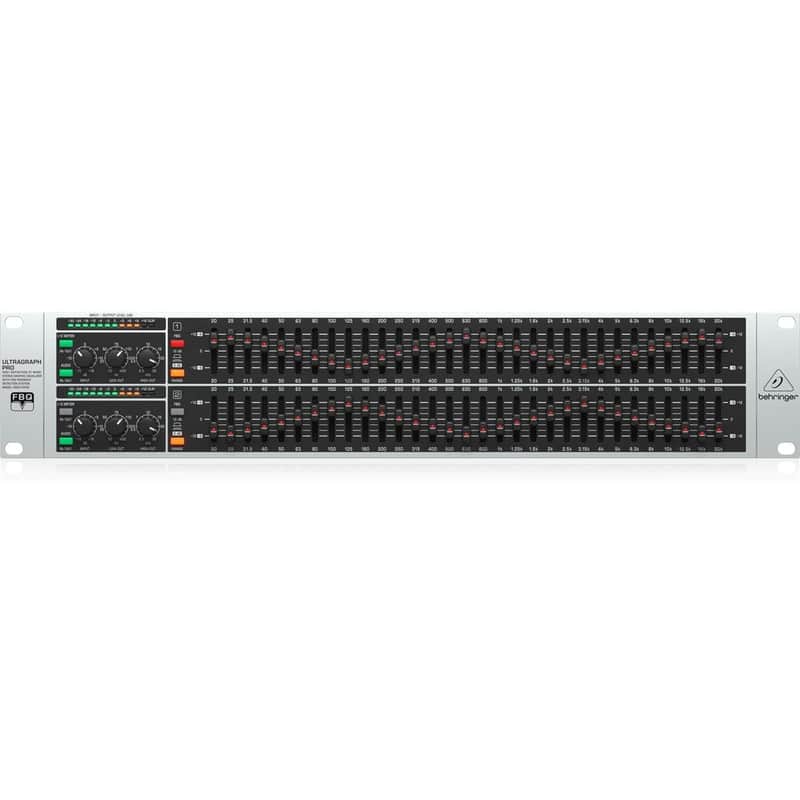

Professional audio engineers have known for decades that a good EQ makes all the difference in how a performance is perceived. Although multi-band graphic equalizers have been around for a long time, they have changed very little until now! The ULTRAGRAPH PRO FBQ3102HD takes the graphic equalizer into the realm of high-definiton audio, providing robust features and our proprietary FBQ Feedback Detection System at a price that makes them a must-have for anyone who records or operates a live sound system.

FBQ - Totally Feedback-Free
For more than 20 years, BEHRINGER has designed and manufactured some of the most successful FBQ Feedback Elimination processors. Now you can own and enjoy the benefits of this technology, as we have integrated the revolutionary FBQ Feedback Detection System into this product, so your sound system is completely feedback-free, allowing you to focus on your performance. Utilizing an ultra-fast feedback detection system, this ingenious circuitry helps you recognize and tame feedback frequencies immediately. When feedback is sensed in a specific frequency range, the LED on the associated EQ fader illuminates, showing you at a glance which fader to lower to overcome the feedback. That simple!

Ultra-Low Noise Operation
The high-definition FBQ3102HD provides superb, ultra-low noise performance thanks to top-notch German engineering, and the use of highest-quality components. Industry-leading 4580 dual operational amplifiers are employed throughout for the utmost signal integrity across the entire audio spectrum. With 15-bands of smooth and precise equalization per channel, the stereo FBQ3102HD adds the finishing professional touch to your recordings and live shows.

Special Tools for Low and High Frequencies
The low-frequency sound range requires special attention. That’s why the FBQ3102HD features an ultra-effective Low-Cut filter on each channel, to help remove non-essential bass content, such as floor rumble, room resonance and electrical hum, etc., which really uses up your power amp’s headroom. This added high-precision control gives the FBQ3102HD the power to accurately fine-tune your system’s overall sound, creating crystal clear and dynamic output with incredibly tight and punchy bottom-end!

Key Features

• Professional 31-band stereo graphic equalizer for live and studio applications
• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies and can also be used as audio analyzer
• Ultra-low noise 4580 operational amplifiers for highest signal integrity
• Dedicated mono subwoofer output with adjustable crossover frequency
• Additional sweepable high and low-cut filters for each channel remove unwanted frequencies, e.g. floor rumble, hiss etc.
• Highly accurate 12-segment LED input/output metering and input gain controls for easy level setting
• Relay-controlled hard-bypass with an auto-bypass function during power failure (fail-safe relay)
• Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
• "Planet Earth" switching power supply for maximum flexibility (100
• - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• 3-Year Warranty Program*
• Conceived and designed by BEHRINGER Germany

Technical Specifications

Audio Inputs
Inputs: RF-filtered, servo-balanced XLR and 1/4" TRS connectors
Impedance: 40 k ohm balanced and unbalanced
Maximum Input Level: +21 dBu balanced and unbalanced
CMRR: typ. 55 dB, >40 dB @ 1 kHz
Audio Outputs
Outputs: Servo-balanced XLR and 1/4" TRS connectors
Subwoofer Out: Balanced XLR connector
Crossover Frequency: Variable, 30 - 200Hz
System
Frequency Response: 10 Hz to 30 kHz, ±3 dB
S/N Ratio: 22 Hz to 22 kHz >94 dB @ +4 dBu
Distortion (THD): Typ. 0.008% @ +4 dBu, 1 kHz, Gain 1
Crosstalk: Typ. -92dB @ 1kHz
Roll-Off Filter Section
Type: 12 dB/oct., Butterworth
Input: ±15 dB, variable
Low Cut: 10 Hz to 400 Hz, variable
High Cut: 2.5 kHz to 30 kHz, variable
Graphic Equalizer
Type: analog 31 band equalizer
Frequency range: 20 Hz to 20 kHz in 31 1/3 octave bands (ISO frequencies)
Bandwidth: 1/3 octave
Control range: ±6dB or ±12dB (switchable)
Function Switches
FBQ: activates the FBQ Feedback Detection System
Audio In/Out: switch to bypass the equalizer functions
I/O Meter In/Out: switches the meter display from input to output
Range: shifts the maximum cut/boost range for all 31 bands
Indicators
Input/output level: 12 segment LED display: -30 / -24 / -18 / -12 / -6 / -3 / 0 /+6 / +9 / +12 dB / CLIP
Power Supply / Voltage (Fuses)
Mains Voltage: 100-240V~, 50/60 Hz
Fuse: T 1.6 A H 250 V
Power consumption: 35W
Mains connection: Standard IEC receptacle
Dimensions
3.5 x 19 x 5.9 inches
Weight
4.4 lbs
