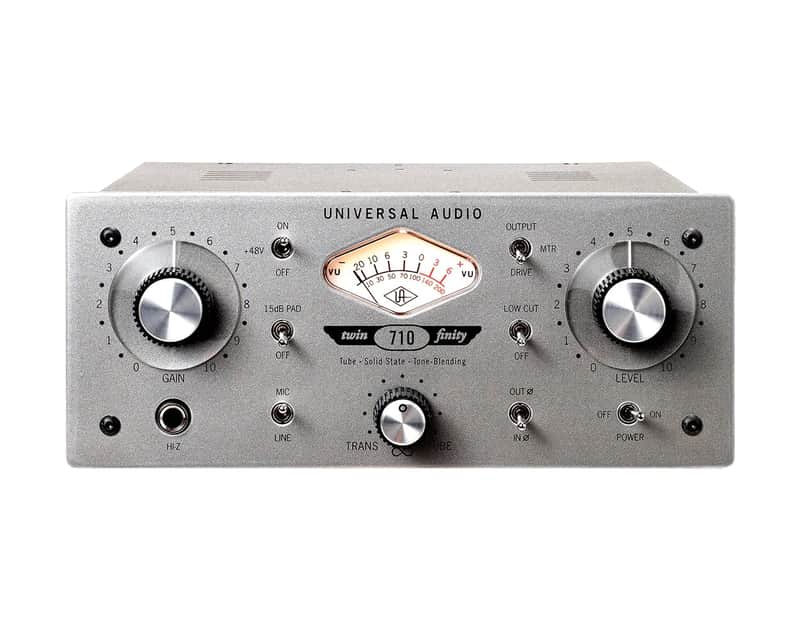

Universal Audio 710 Twin-Finity Tone-Bending Mic Preamplifier

*****THIS IS AN ONLINE ONLY ITEM. THIS IS NOT AVAILABLE AT GPS'S PLYMOUTH OR KINGSTON LOCATION*****

The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that gives you the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps. Tone blending is continually variable between 100% tube and 100% solid-state, offering a practically infinite range of unique preamp tones, plus the ability to easily dial-in your own signature sound.

Get tube and solid-state sonics and everything in-between with this unique mic pre/DI.

• Harness the distinct sonic properties of tubes and solid-state in one unique preamp/DI
• Blend between tube and solid-state sounds for myriad textures and tones
• Unlock the potential of your mic locker with a powerfully versatile preamp
• Easily track guitar, bass, or keyboards with the front panel 1/4“ Hi-Z instrument input

• Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI
• Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp
• Phase-Aligned "Tone-Blending" of Tube and Solid State
• Dual Gain Stages: Wire with Gain to Creamy to Crunchy
• Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance
• Monolithic Balanced Output Stage
• 70dB+ of gain, +48V Phantom, Pad(-15dB), Phase Invert, and Low Cut Filter(75Hz)
• Output and "Drive" backlit VU metering
• Portable, Rack-Mountable design for Studio, Desktop or Stage
• 19” Rack Kit Included
• Front Panel Hi-Z Input (switched from Mic/Line automatically via Jack Detect)
• Rear Panel XLR Mic Input, XLR Line Input and XLR Line Output
• Universal Internal Power Supply
• Heavy-Duty Metal Construction

Specs

Inputs

• Microphone (Female XLR)
• Balanced Line (Female XLR)
• Unbalanced Instrument (1/4" jack) (D.I.)

Outputs

• Balanced Line (Male XLR)

Tube Complement

• 12ax7

Pad

• -15dB

High Pass Filter

• 75Hz

Maximum Power Consumption

• 160mA @120VAC, 20W

Power Requirements

• 100-240VAC

Dimensions

• 8.45W x 3.5H x 10.25D

Weight

• 5.25 lb

Impedance

• Mic Input Impedance
• 2K ohms
• Line Input Impedance
• 10K ohms
• Hi-Z Input Impedance
• 2.2M ohms
• Internal Output Impedance
• 600 ohms

Gain/Levels

• Gain Range for Unit
• -Infinity to 70dBu
• Mic Range Gain Pot
• 10 ~ 60 dBu
• Line Range Gain Pot
• -10 ~ 40 dBu
• Hi-Z Range Gain Pot
• -10 ~ 40 dBu

Frequency Response

• Mic Frequency Response
• 20Hz to 100kHz +/- 0.2 dBu
• Line Frequency Response
• 20Hz to 100kHz +/- 0.2 dBu
• Hi-Z Frequency Response
• 20Hz to 100kHz +/- 0.2 dBu

Distortion

• Min THD+Noise @ +4dBU
• 0.1% tube 0.005% solid-state
