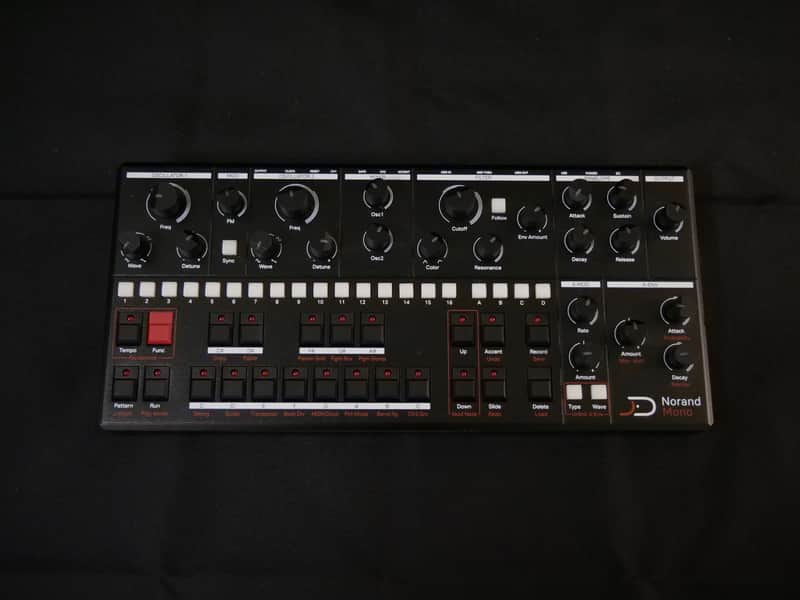

Norand Mono Mk1 2022 - Black
This seller has not set a shipping cost for Czech Republic. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
Our users rate Reverb
Features
⦁ All analogue synthesis engine
⦁ Two continuously variable waveform VCOs
⦁ Through-zero frequency modulation
⦁ 3-pole state-variable filter
⦁ 13 dedicated AD envelopes
⦁ 20 multi-mode dedicated modulators
⦁ 2048 pattern with patch memory
⦁ Automation: 3200 events per pattern
⦁ 40 custom patches or timbres per project with Mode Note
Synth Voice Features
⦁ Fully analogue signal path
⦁ 2x analog oscillators
⦁ Continuously variable waveform
⦁ Through-zero frequency modulation
⦁ Hard-sync
⦁ Filter overdrive
⦁ 1x 3-pole multi-mode filter
⦁ Continuously variable filter color
⦁ 1x Main ADSR envelope
Modulation Features
⦁ Controls: 13x dedicated AD envelopes, 20x dedicated modulators
⦁ Modulator: 4 waveforms, Type settings: Free/Synced/Audio-Rate, Audio-Rate anti-aliased, quantized to OSC1 Free from 0.1 to 80 seconds
⦁ Envelope: Attack-Decay segment from 10us to 20s
Sequencer
⦁ Up to 64 step per pattern
⦁ Individual Length/Scale/Beat-division per pattern
⦁ Individual Microshift/Ratchet/Probability per step
⦁ Run options: 9 play styles, 3 play modes
⦁ Per step parameter automation (offsets)
⦁ Swing/Slide/Accent
⦁ Copy/Paste anything
⦁ Undo/Redo anything with 1024 events history
⦁ Mod Note mode
⦁ Fast, clock independent project Load/Save
Randomizer
⦁ Quantized note randomizer
⦁ Ranged parameter automation randomizer
⦁ Step randomizer
⦁ Mod Note randomizer Microshift/Probability/Ratchet randomizer
Storage
⦁ 32 projects
⦁ 64 patterns with patch memory per projects
⦁ 3200 parameter automation per pattern
⦁ 40 Mod Notes per projects
Hardware
⦁ 23x transilluminated potentiometer
⦁ 24x illuminated silent mechanical switch
⦁ 23x 808-style switch
⦁ MIDI In/Out/Thru
⦁ 1x 1/4” unbalanced main audio out jack
⦁ 2x 1/8” Eurorack Clock/Reset input
⦁ 2x 1/8” Eurorack CV outputs
⦁ 2x 1/8” Eurorack Gate outputs
⦁ 48kHz internal CV D/A converters
⦁ Flash-EEPROM upgradable OS
⦁ MIDI class-compliant USB-B port
Outputs
⦁ Balanced audio outputs: Output level: +15dBu maximum, Output impedance: 200 Ohm
⦁ CV outputs: Voltage range: -8V/+8V, 1V/oct resolution: 3 cents of a semitone
Electrical Specification
⦁ Unit consumption: 10W typical
Physical Specifications
⦁ Machined aluminium front panel
⦁ ABS-PC back panel
⦁ Dimensions: W 320 mm x D 150 mm x H 42 mm
⦁ Weight: approx. 1.6 kg
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | B-Stock (Used) B-Stock items are sold by an authorized dealer or original builder, but have been opened, blemished, or used in some manner.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
