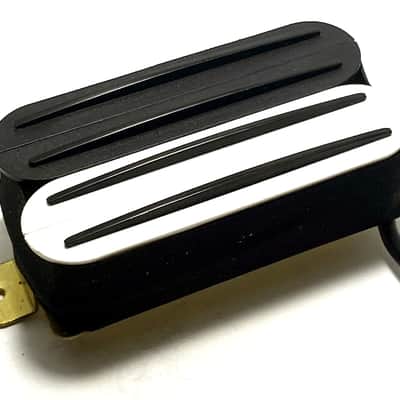

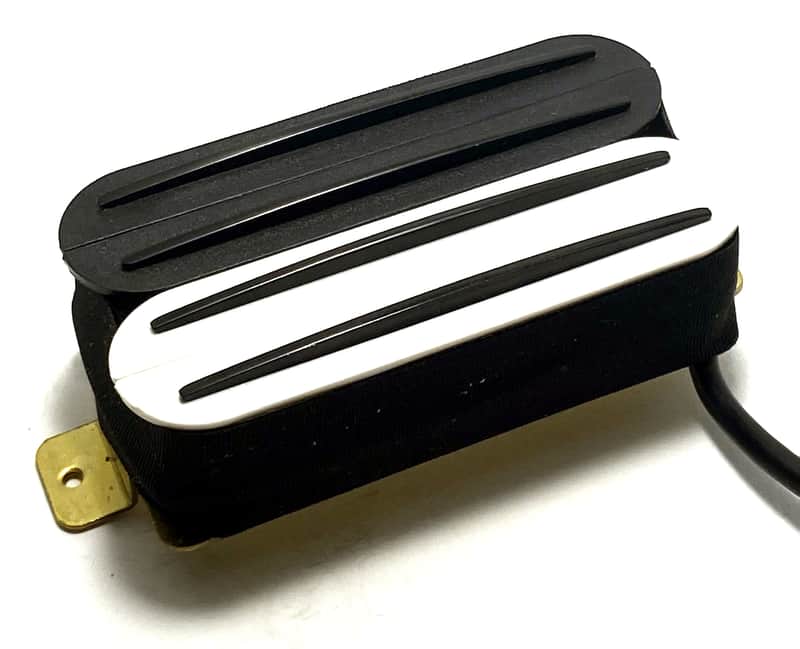

Quad Rails White Black Zebra Neck Humbucker, Four Black Blade Rails, Passive 23K Pickup ~ Style A

Dragonfire Quad Rails Neck Humbucker, Four Blade Rail Style Passive Pickup ~ White Black Zebra Style "A" with Black Rails ~ Ceramic Overwound Hot Performance

These Quad Rails are the full-size mega humbucker version of the super popular Dragonfire Duo Rails. Designed to outperform, dominate and deliver in a wide variety of genres and playing styles, Quad Rails excel when hot presentation is not only a bonus, but an execution expectation.

Dragonfire Quad Rails can help you avoid string-to-string definition loss and provide enhanced response so you can explore and discover new dimension and results from your playing. These humbuckers provide a steady dynamic for sweep picking, bends, vibratos and other extreme performance styles.

Wound to a staggering 23K output around ceramic bar magnets, these Quad Rails are the hottest passives we offer. They are sizzling hot for sure and offer superior coil split results, but these pickups also deliver some nice clean tones when you back down for a new playing profile.

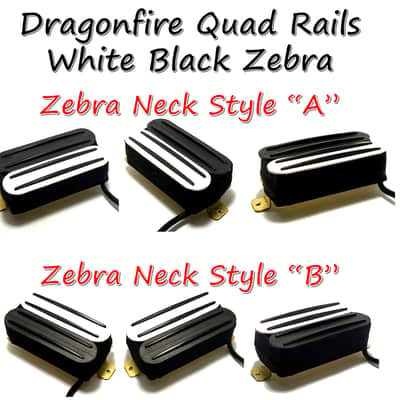

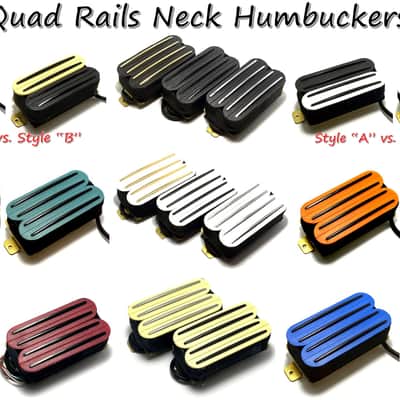

We offer a variety of colors in this pickup style as well as Strat single-coil sized matching humbuckers. Check our Reverb Store for pickup sets, related styles, and other colors including black, blue, cream, green, orange, pink, purple, red, teal, white, yellow and cream-black zebra. When selecting zebra pickups, please be sure to reference the images provided to confirm the bobbin orientation you want. Contact us if you have any questions.

Product Highlights
*6 String Passive Humbucker Pickup
*Quad Rails ~ Thin / Blade Duo Rail Style (Each Bobbin)
*Hot Wound / Overwound Pickup
*Rail Humbucker Style for Outstanding String Response
*Uncovered Open Coil Bobbin Construction
*Modern Ceramic Bar Magnet Type
*4 Conductor Wiring (4 Wire Pickup Design)
*Superb Coil Split, Phase Reversible & Series-Parallel Options
*Wax Potted for Squeal Reduction

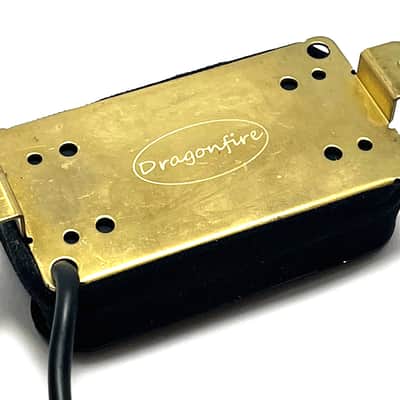

*Standard Style Short Mounting Legs
*Standard Insulated Lead Wire (Modern Stranded Style)
*Pickup Mounting Screws & Springs Included
*500K Pots & 0.047 Tone Caps Recommended

Approximate Measurements
*Approximate Output: Wound to ~23K
*Pickup Length: 68mm (84mm including mounting flanges)
*Rail Length: 58mm
*Pickup Width: 37mm
*Pickup Depth (incl. rails): 22mm (28mm incl. flanges)
*Mounting Screw Spacing: 78mm

Installation Information

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation in standard usage situations.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire codes provided with your order. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the wire code information we provide with purchase to match up with any diagram or instructions you choose to use.

These humbuckers are 4-wire so you can coil-split as well as add series-parallel or phase reverse functionality for expanded wiring and playing options (instructions not included). If you’d like to update your wiring or performance and have us create a new wiring system for you, check out our Wiring Harnesses.

Overall build details and wiring will determine how these pickups will perform in your system. Please be aware that we do not provide information or comment regarding any diagrams/instructions, components or pickups other than our own. We would recommend considering a standard or solderless prewired harness from our store if you are not familiar with wiring requirements. Please contact us with any questions before completing your purchase.

Purchase Notes

Color indicates color, not material, and may be subjective. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Our colors may be specific to our brand; please do not purchase if you are trying to color-match or looking for a specific color/shade/appearance. Contact us prior to purchase if you have any questions regarding special requests, fit, materials, installation requirements, compatibility with your instrument, measurements, prewired components/harnesses, or anything else.

Buyers assume all risk of use; sales are only offered to those competent to safely and lawfully purchase and use items.
