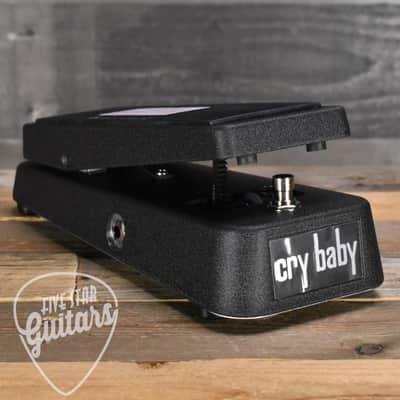

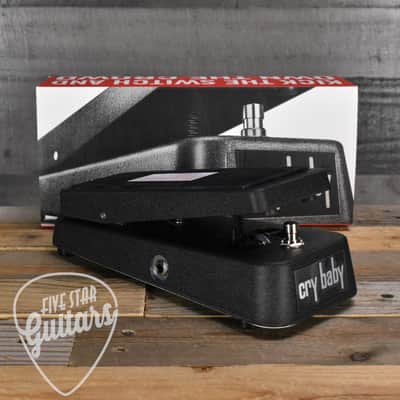

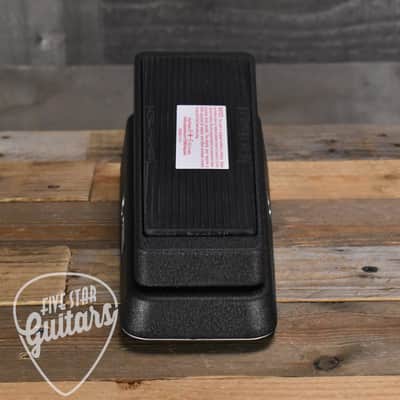

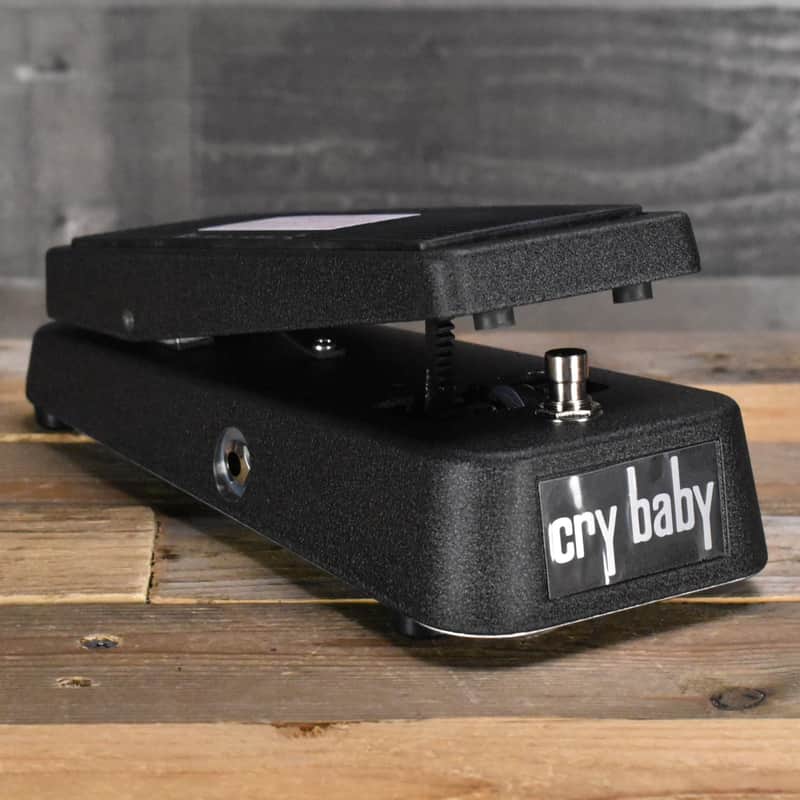

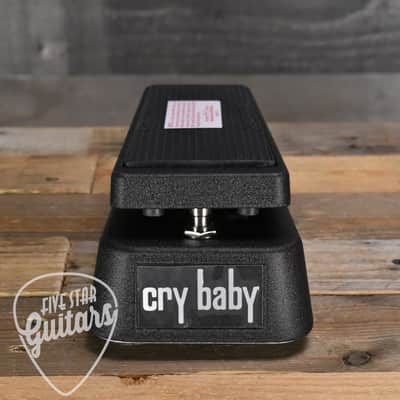

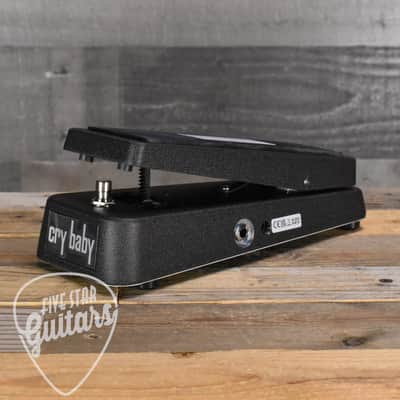

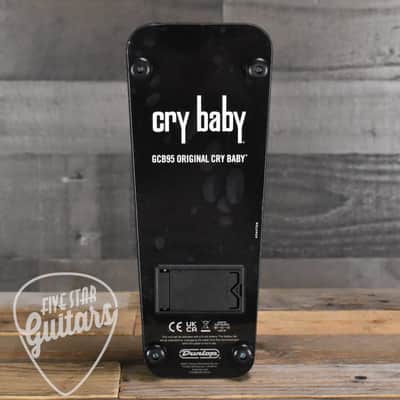

Dunlop Cry Baby Wah Wah - GCB95Dunlop Cry Baby Wah Wah - GCB95: The Iconic Sound of Rock

When people talk about wah-wah pedals, they're talking about the Cry Baby Wahs. This is the one that created some of the most timeless sounds in rock. The pedal that would eventually become the Cry Baby was first created in 1966 by engineers at the Thomas Organ Company. This mint and expressive effect was an instant hit with players like Jimi Hendrix and Eric Clapton, who have contributed to the Cry Baby Wah's huge popularity to this day. While other effects have come and gone, the Cry Baby Wah just keeps getting better with age.

Legendary Tone with Modern Enhancements

The Cry Baby Wah is the most iconic guitar effect in music history. When it hit the scene in 1966, it added a whole mint layer of expression to the electric guitar-players such as Jimi Hendrix and Eric Clapton used the Cry Baby Wah to create some of the most timeless sounds in rock. The GCB95 is a modern interpretation of that sound, featuring the lush, expressive character of the legendary red Fasel inductor with a more focused high end and a more aggressive and accentuated wah sound.

Built to Last

With a heavy-duty die-cast housing and a Hot Potz Potentiometer tested to one million cycles, the Cry Baby Wah will withstand years of playing. This durability ensures that your pedal will continue to perform flawlessly, gig after gig. Whether you're in the studio or on stage, the Cry Baby Wah delivers reliable performance every time.

Power Options

The Cry Baby Wah can be powered by a Dunlop ECB003 AC Adapter or a single 9-volt battery, providing flexibility for different playing situations. This convenience allows you to use the pedal wherever you go, ensuring that you can always achieve that classic wah sound.

SpecificationsControls

• Pedal switch

Indicators

• LED indicator for power status

Connectors

• Input Jack: 1/4-inch phone type
• Output Jack: 1/4-inch phone type
• DC IN Jack

Power Supply

• Dunlop ECB003 AC Adapter (sold separately)
• Single 9-volt battery

Current Draw

• 900?A

Impedance

• Input: 800 k?
• Output: 10 k?

Filter Parameters

• Low Pass: 350 Hz ~ 450 Hz
• High Pass: 1.5 kHz ~ 2.5 kHz

Maximum Level

• Input: -8.0 dBV
• Output: +10 dBV

Maximum Gain

• Heel Down: +19.5 dB
• Toe Down: +19 dB

Signal to Noise Ratio

• Heel Down: 98 dBV
• Toe Down: 89 dBV

Size and Weight

• Width: 4 inches (102 mm)
• Depth: 10 inches (254 mm)
• Height: 2.5 inches (64 mm)
• Weight: 3.7 lbs (1.7 kg)

This pedal ships fully insured with signature required.
