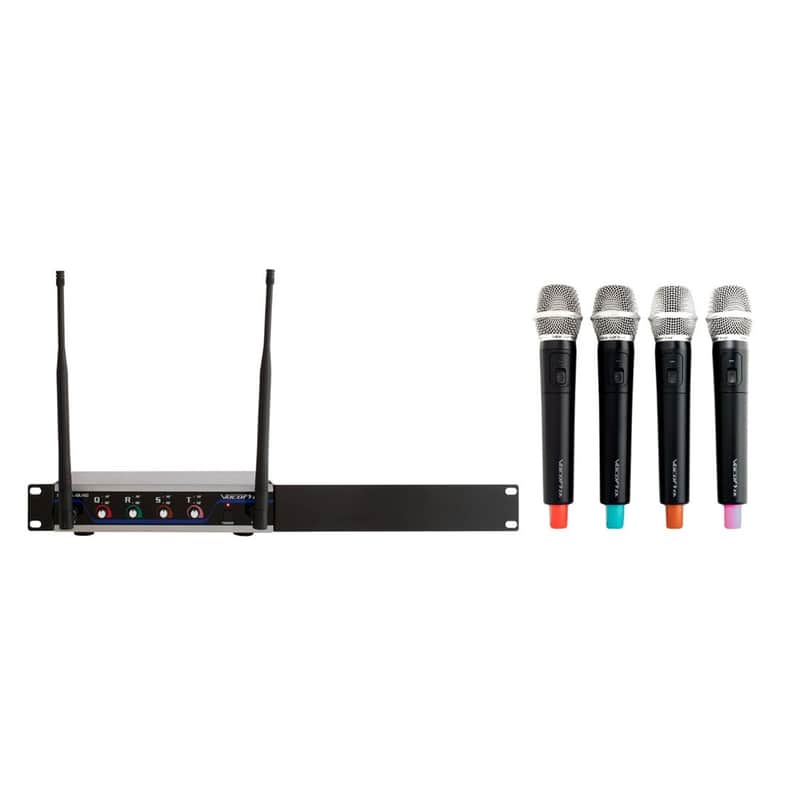

VocoPro Digital-Quad-H 4-Channel UHF Wireless Handheld Microphone System

Overview

The VocoPro Digital-Quad-H is a professional-grade 4-channel UHF wireless handheld microphone system designed for performers, presenters, and venues requiring reliable and high-quality audio transmission. Operating in the 900 MHz frequency band, it minimizes interference and provides a stable connection. With 24-bit digital technology and individual microphone IDs, this system ensures clear sound reproduction and eliminates crosstalk between channels. Its compact receiver and included rackmount kit make it suitable for various installations.

Features:

• Four wireless handheld microphones – Equipped with individual digital IDs to prevent crosstalk.


• Operates in the 900 MHz frequency band – Reduces the risk of interference for stable performance.


• 24-bit digital technology – Delivers professional-quality audio with clarity and precision.


• Each channel has a dedicated XLR output and volume control – Offers detailed sound management per microphone.


• One 1/4" mixed output – Simplifies setup when fewer connections are needed.


• Wide frequency response (50 Hz – 20,000 Hz) – Provides natural and full-range sound reproduction.


• Receiver dimensions: 8.375" W x 1.25" H x 5.25" D – Compact and rackmount-ready.


• Includes rackmount brackets, 1/4" patch cable, and power adapter – Ensures easy installation and setup.

Specifications:

• Frequency Band: 900 MHz


• Digital Resolution: 24-bit


• Operating Range: Up to 200 feet


• Microphone Type: Handheld dynamic


• Polar Pattern: Cardioid


• Outputs: 4 x XLR (balanced), 1 x 1/4" (mixed)


• Power Source: Receiver – AC adapter; Microphones – AA batteries (not included)


• Included Accessories: Rackmount brackets, 1/4" patch cable, power adapter
