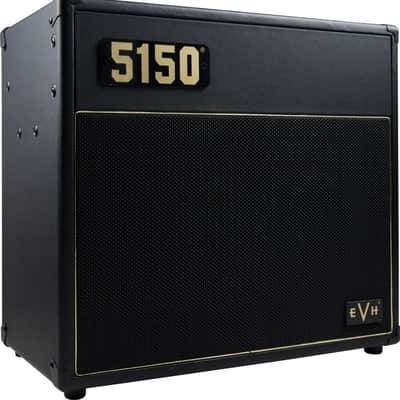

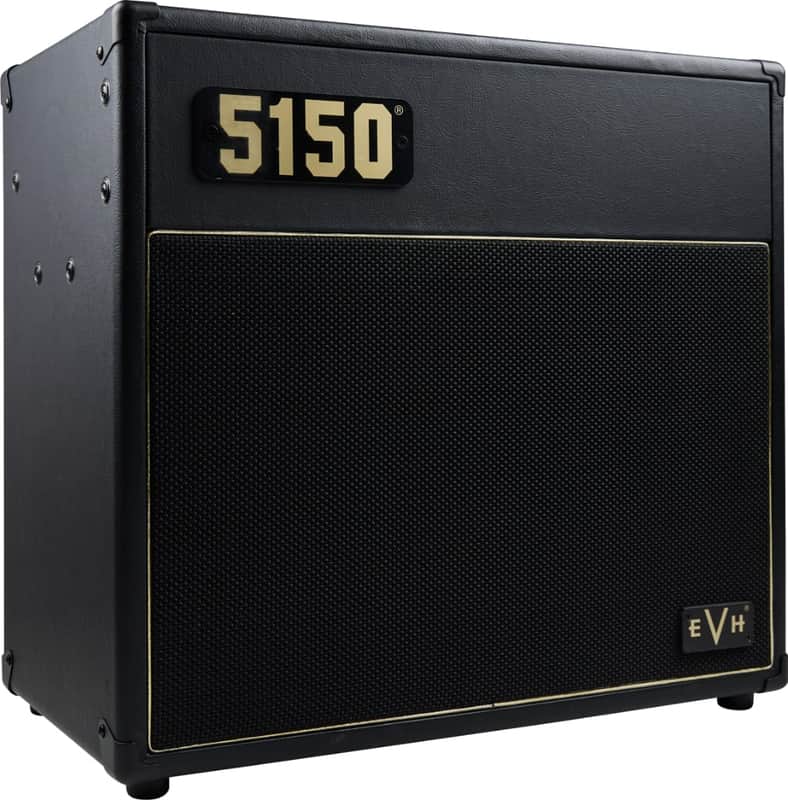

EVH 5150® Iconic® Series 15W EL34 1X10" Combo Amplifier, Black, 120V

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III® amplifiers, the Iconic Series delivers the signature sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt 1x10 combo is powered by one EL34 power tube and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs. The cabinet is constructed out of MDF with special internal plywood baffling for tight and increased bass response, and houses a custom designed EVH 10” Celestion® speaker voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

Punching above its weight, this combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads. Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.
Other features include a one-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor’s solitude, and a speaker-emulated DI 1/8" output jack with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system. Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 15-watt 1x10 combo is wrapped in either Black textured vinyl with a black cloth front grille and features gold and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed gold anodized aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle.

General

Series

5150® Iconic®

Color

Black

Amplifier Type

Tube

Country Of Origin

ID

Electronics

Control Panel

Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence

Inputs

One - 1/4"

Auxiliary Input

1/8 in (3.5 mm) Stereo

Headphone Jack

1/8" Stereo

Line Out

One - (1/8" Stereo)

Channels

Two - Clean/Overdrive and Lead/Burn

Effects

Reverb

Effects Loop

1/4" (Send/Return)

Connection Type

1/4"

Voltage

120V

Wattage

15 Watts

Hardware

Control Knobs

Black Chicken-Head Style Pointer

Amplifier Covering

Textured Vinyl

Cabinet Material

MDF w/ Plywood Baffle

Grille Cloth

Black

Handle

Molded Plastic Strap with Black Powder Coated Caps

Amplifier Jewel

Red Jewel

Speaker Jack

Two - 1/4" Parallel

Speakers

Speakers

One - 10" EVH® Celestion® Custom

Speaker Wattage

15 Watts

Total Impedance

4, 8, or 16 ohms

Tubes

Power Tubes

1 X EL34

Preamp Tubes

2 x ECC83S

Rectifier

Solid State

Measurements

Dimensions

15.00x22.00x23.00 IN

Shipping Weight

43.40 LB

Product Depth

10.25" (26.04 cm)

Product Height

18.5" (47.0 cm)

Product Width

19.69" (500 mm)

Power Tubes

1 X EL34

Shipping Length

23.00 IN

Shipping Height

15.00 IN

Shipping Width

22.00 IN

Accessories

Included Accessories

One-button footswitch, IEC Power Cable, Owners manual

Footswitch

1-Button Footswitch Included
