Dual-Output Buffer for Pristine Signal Routing

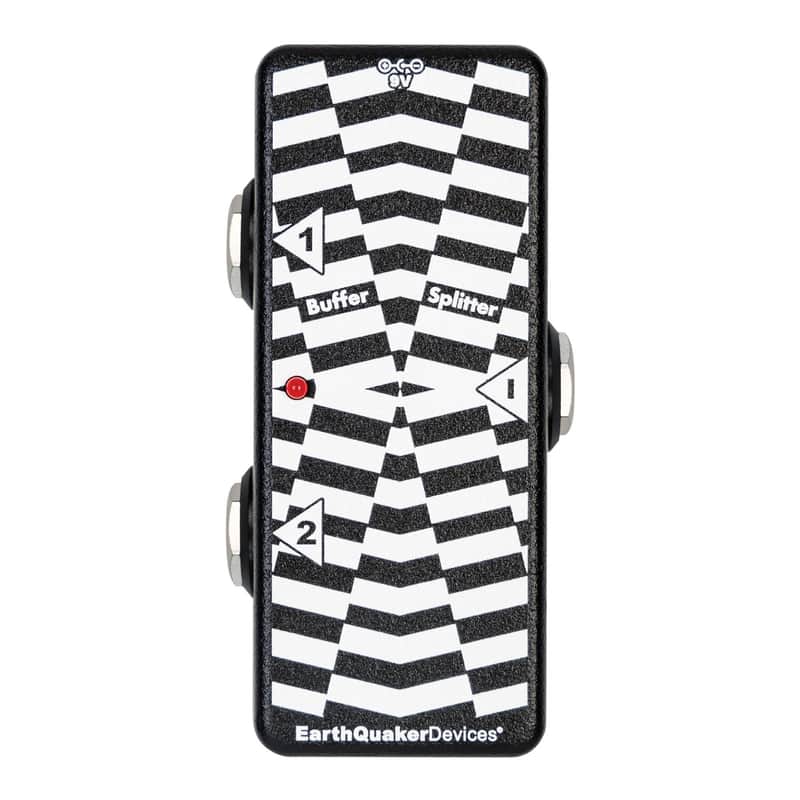

The Buffer/Splitter from EarthQuaker Devices is a compact utility pedal designed to maintain your instrument’s tonal integrity across complex signal chains and long cable runs. Utilizing a high 1 MΩ input impedance and a low 100 Ω output impedance, this pedal ensures that your signal remains clear, dynamic, and free from the high-end loss often associated with multiple true bypass pedals.

What sets the Buffer/Splitter apart is its dual-output functionality. This feature allows you to split your signal into two separate paths, enabling a variety of routing options:

•Dual Amplifier Setup: Send your signal to two different amplifiers simultaneously.

•Wet/Dry Configuration: Route one output through your effects chain while keeping the other output dry for a blend of processed and unprocessed tones.

•Stereo Signal Creation: Transform a mono signal into a stereo output for a wider soundstage.

•Tuner Isolation: Remove your tuner from the main signal path to prevent potential tone degradation.

This versatility makes the Buffer/Splitter an invaluable tool for guitarists, bassists, and other musicians seeking to preserve their tone while exploring complex routing setups.

Key Features:

•High Input Impedance (1 MΩ): Ensures compatibility with a wide range of instruments and preserves signal strength.

•Low Output Impedance (100 Ω): Provides a strong signal capable of driving long cable runs and complex pedalboards without tone degradation.

•Dual Outputs: Facilitates versatile routing options, including dual-amp setups, wet/dry configurations, and stereo signal creation.

•Compact Design: Fits easily into any pedalboard setup.

•Handcrafted Quality: Built by hand in Akron, Ohio, ensuring durability and reliability.

Specifications:

•Dimensions: 3.6875” x 1.8125” x 1.8125” (94 x 46 x 46 mm)

• Current Draw: 15 mA

•Power Requirements: Standard 9V DC power supply with a 2.1mm negative center barrel (not included)
