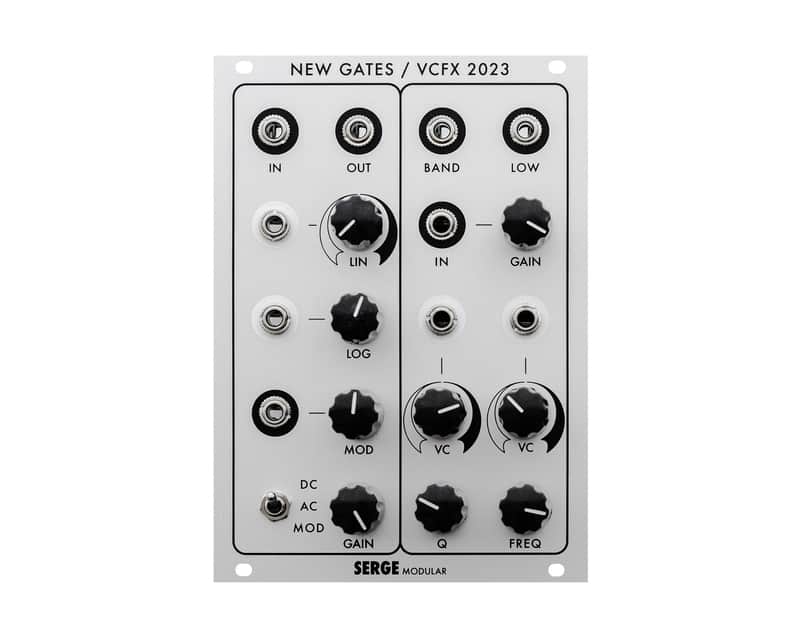

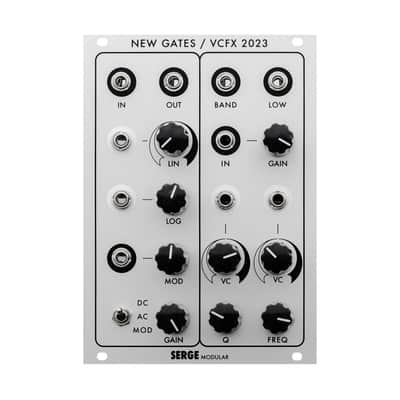

Serge Modular New Gates/VCFX

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combinations of these.
The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

• Combined multimode VCA and band pass / low pass filter
• Left side VCA module with three CV control modes
• DC/Linear mode: initial level set with Gain control, Linear CV control with attenuverter, 0-5V output
• AC/Logarithmic mode: initial Gain control and Logarithmic CV control with attenuator, AC-coupled output
• Mod mode: enables ring modulation of input signal with signal at Mod input
• White jacks are DC coupled (suitable for audio or CV), Black jacks are AC coupled
• Lin, Log, and Mod inputs can be used simultaneously to affect output
• VCFX 2023 band pass filter with low pass output, 2-pole 12dB slope
• CV and manual control over filter resonance and frequency with attenuverters
• Filter input Gain control

• 18 HP 25 mm deep
