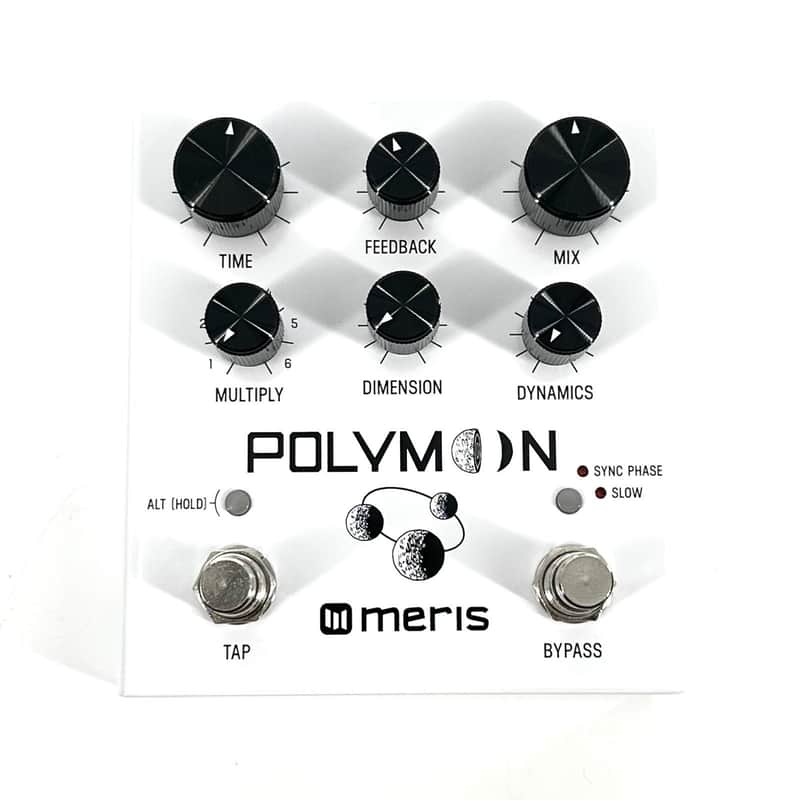

Super-Modulated Delay inspired by cascaded rack gear.

Super-Modulated multiple tap delay

• 1200mS real time selectable multiple-tap delay line
• Massive multi LFO modulation controls
• 6 custom tuned LFOs with adjustable waveforms for subtle to aggressive pitch shifting effects
• Adjustable Tilt EQ filter in delay feedback
• Tempo syncable stereo Barberpole Phaser
• Multimode stereo Dynamic Flanger w/ feedback
• Unique feedback topology
• Dimension control for smearing reflections
• Selectable quarter or dotted eighth note Tap Tempo
• Digitally controlled Analog mix control
• Stereo input and output
• Switchable input output headroom level for Guitar, Synthesizer or Line levels
• MIDI in/out over TRS via the EXP jack with compatible MIDI to TRS conversion box (not included)
• Multi-function EXP jack for optional expansion: MIDI, Preset Switch, Expression Pedal or Tap Switch with compatible hardware.  (Expansion hardware not included)
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• External Tap Tempo over TRS
• MIDI beat clock synchronization
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – white powder coat with fine iridescent flake
• Designed and built in Los Angeles, California U.S.A

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Digitally controlled Analog Dry path for wet/dry mix
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• Durable white powder coat with fine iridescent flake
• Current draw < 150 mA
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
