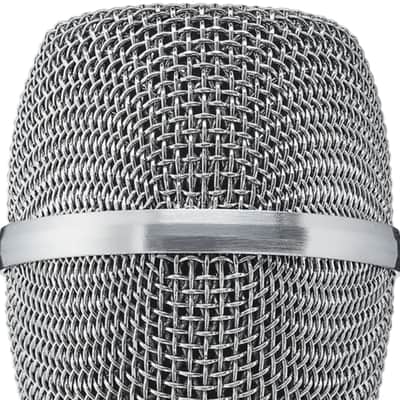

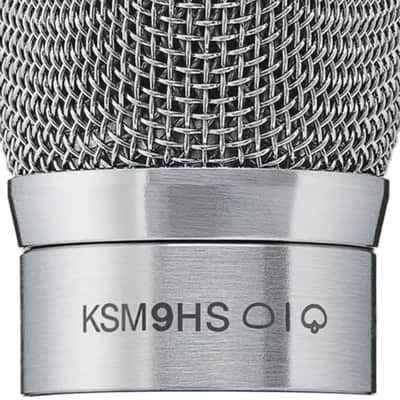

This nickel Wireless Head from Shure replaces a damaged or faulty element on a KSM9HS handheld condenser microphone. It features dual 3/4" gold-layered, low-mass Mylar diaphragms and switchable hypercardioid an subcardioid polar patterns for flexibility in demanding performance applications. The capsule's 50 Hz to 20 kHz wide frequency response enhances vocal character.

Features

• For KSM9HS Handheld Condenser Microphone
• Hypercardioid/Subcardioid Polar Pattern
• 50 Hz to 20 kHz Frequency Response
• Dual 3/4" Gold-Layered Mylar Diaphragms

Specifications:

General
- Element Type: Condenser
- Polar Pattern: Hypercardioid / Subcardioid/Wide Cardioid

Performance
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: Hypercardioid: 150.8 dB SPL (2.5-Kilohm Load), 150.9 dB SPL (1-Kilohm Load), Subcardioid/Wide Cardioid: 153.0 dB SPL (2.5-Kilohm Load), 153.1 dB SPL (1-Kilohm Load)
- Off-Axis Rejection: >60 dB
- Sensitivity: Hypercardioid: -50.5 dBV/Pa at 1 kHz, Subcardioid/Wide Cardioid: -53.0 dBV/Pa at 1 kHz
- Dynamic Range: Hypercardioid: 130.8 dB (2.5-Kilohm Load), 130.1 dB (1-Kilohm Load), Subcardioid/Wide Cardioid:, 130.1 dB (2.5-Kilohm Load), 130.6 dB (1-Kilohm Load)
- Signal-to-Noise Ratio: Hypercardioid: 73.3 dB, Subcardioid/Wide Cardioid: 71.3 dB

Connectivity
- Output Connector: 1x Concentric Ring 3-Pin

Physical
- Color: Nickel
- Mounting Thread Size: 1.25"-28 Male
