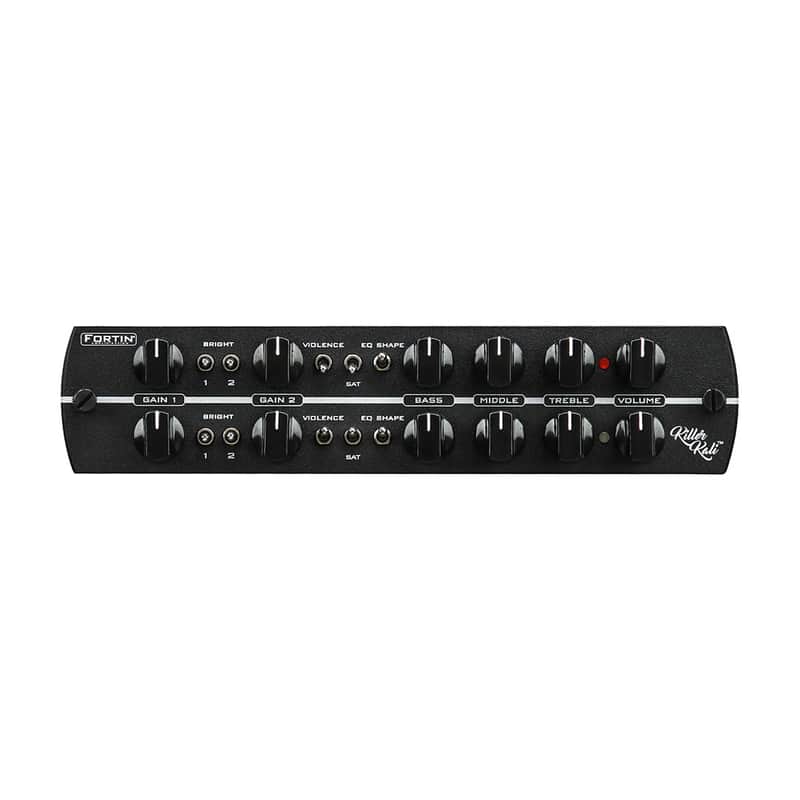

The Killer Kali is a two channel pre-amp, designed to work exclusively in the Synergy Amp systems. Each channel is completely independent and enjoys its own tone stack and multiple tone shaping features.

Gain 1 and Gain 2

Cascaded Gain stages. Gain 1 controls the first gain stage whereas Gain 2 controls the second gain stage.

Bright Switches

3-way Bright switch for each Gain control. At the top is the Brightest, most aggressive tone. The Bright switches are directly connected to the Gain control so the higher you have the Gain, the less the Bright tends to affect the tone (similar to the Bright control on a standard Plexi Amp). In the middle it is full range, so is unaffected by the Gain control. At the bottom position, the Brightness is similar to the classic Bright control on an 800 2203.

Violence Switch

In the down position, it utilizes the three Gain stages, when up it brings in an additional tube Gain stage.

Sat (saturation) Switch

Down, no change. Up, adds another clipping circuit that increases compression and Gain.

EQ Shape

A three-way switch that changes the points of the EQ. Up is a typical M style tone stack, the middle is more F style (more scooped) and then all the way down is “somewhere in between” - shifting up the treble and midrange.

Specifications

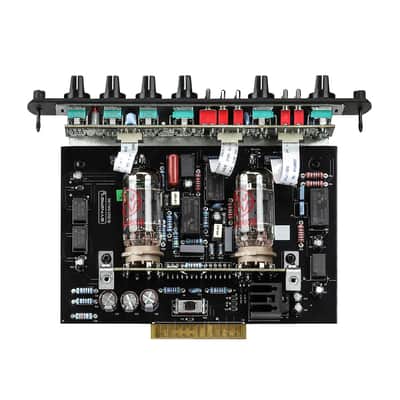

• All-tube pre-amp module custom designed by Mike Fortin
• Two identical channels with Gain 1, Gain 2, Volume and 3-Band EQ
• Three position Bright switches per gain pot, per channel
• Violence switch on each channel
• SAT switch on each channel
• Three position EQ Shape switch per channel
• PCB Mounted Gain Structure switch (lets you reduce the overall Gain)
• 2 x 12AX7 pre-amp tubes ensure rich harmonic performance
• Easy to install and remove from Synergy pre-amp docks
