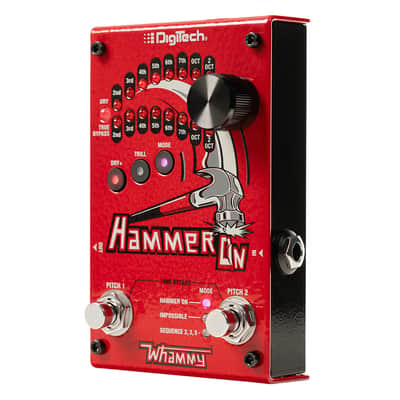

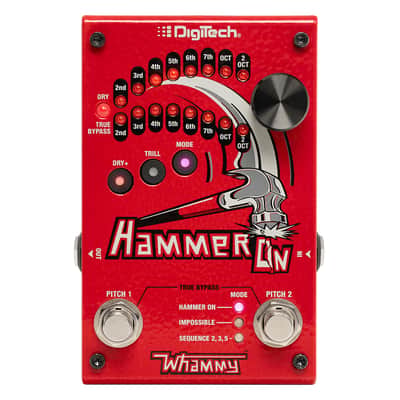

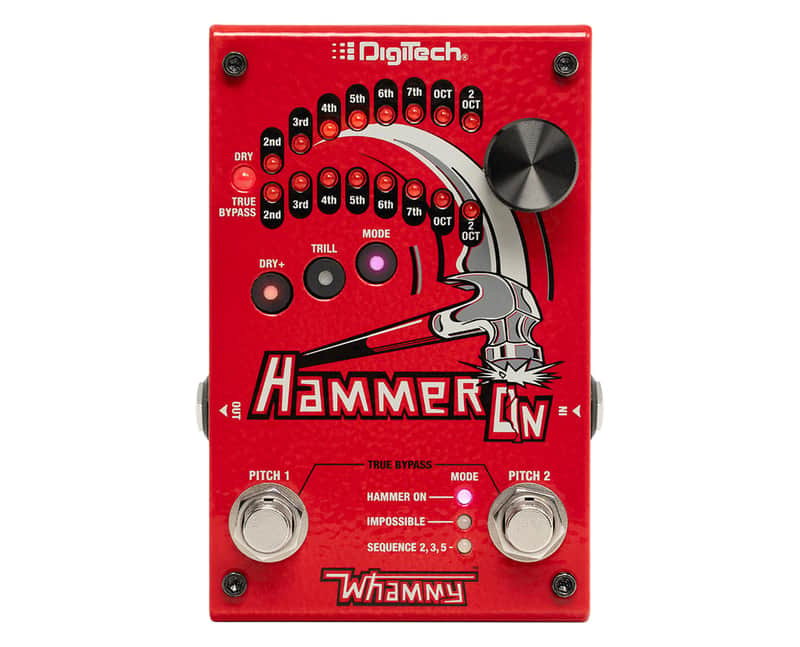

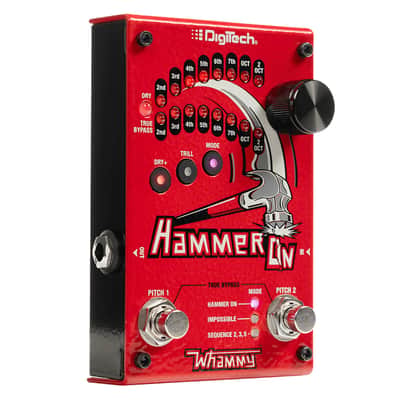

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

Hands-free

Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs — the only limit is your imagination.

Independent Programmable Footswitches

Instantly jump to a new pitch, engage the sequential pitch sequencer, and much more.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings — HammerOn is like seven pedals in one.

Play The Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

Next-Level Pitch Effects

Based on DigiTech's acclaimed Whammy TM technology to deliver next-level creative pitch effects.

Hammer-On Mode

Instantly jump to a new pitch - you can program a different pitch for each of the dual footswitches.

Add Some Trill

Trill mode turns a single switch press into multiple rapid-fire pitch shifts.

Instant Harmony Creation

Press DRY+ to blend your dry guitar signal with the pitch-shifted signal.

Drop/Capo Sequence

Step through alternate drop/capo tunings, or programmable pitch-shifted note sequences.

Sequence+Trill

Combine a programmable pitch sequence with the Trill function for an innovative new type of pitch- sequencing effect.

All Systems Go

Engage sequence mode, Trill, and DRY+ simultaneously to turn HammerOn into an automatic techno guitar sequencer.

Pitch 1 Footswitch

This footswitch is dedicated to the hammer-on effect. Pressing the button will jump the pitch to the selected value, and releasing it will return the pitch back to the previous unshifted value.

Pitch 2 Footswitch

The PITCH 2 footswitch is programmable to be either a momentary hammer-on single pitch jump, the Impossible momentary alternating pitch jump, or one of the three latching sequential pitch transpositions, depending on the currently selected MODE.

True Bypass

The combination of pushing the PITCH 1 and PITCH 2 footswitches together will put the unit into True Bypass. To exit True Bypass, simply press a single footswitch.

Features

With all these options it’s like having 7 pedals in one

• Hammer-On : An instantaneous momentary pitch shifter pedal
• Hammer-On With Trill : A rapid fire hammer-on action pedal
• Harmony-On : An instantaneous harmony creation pedal
• The Impossible Pedal : A dual alternating momentary pitch shift pedal
• Drop/Capo Sequence : A multi-setting pitch transposition pedal
• Sequence With Trill : An automatic guitar riff sequencer
• Sequence With Dry And Trill : An automatic techno guitar sequencer

Electronics

• Sample Rate : 44.1 kHz in classic mode, 22 kHz in chords mode
• Frequency Response : 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
• Signal to Noise Ratio : > -106dB (A weighted); ref = max level, 22 kHz bandwidth
• THD : 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
• A/D/A Conversion : 24-bit

Input / Output

• Input Type : 1/4” Unblanaced TS
• Max Input Level : +5 dBu
• Input Inpedance : 1MΩ
• Output Type : 1/4” Unblanaced TS
• Max Output Level : +10 dBu
• Output Impendance : 1kΩ (Effect enabled or effect bypassed), True Bypass

Physical

• Dimensions : 5.12”(13.00cm) x 3.57”(9.06cm) x 1.84”(4.67cm) (L x W x H)

Power

• Power Consumption : 2.3 Watts (258 mA @ 9VDC) typical
• Power Requirements : External Adapter (included), 9 VDC 1300 mA
