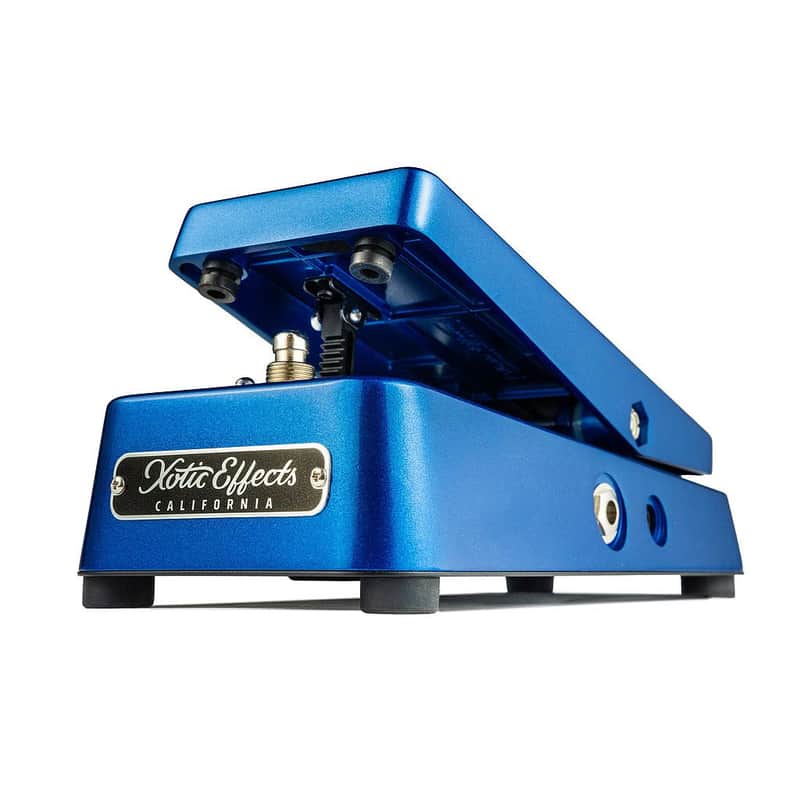

The Xotic XW-2 is a refined wah pedal design with an emphasis on “minimal controls with maximum tone”.

The wah tone and EQ are dialed in to perfection making accessing the perfect wah sound easier than ever. With plug-and-play simplicity, you can achieve the finest wah sound that will truly elevate your creative ingenuity.

The XW-2 features a custom wound inductor, pot and circuit which not only captures the pure essence of vintage Clyde McCoy (as XW1 did), but also breathes an evolved essence (of wah) that goes beyond vintage. As with the XW-1, the pedal has a relay-based true bypass switch and adjustable rocker tension to optimize your rocker pedal to your liking.

The XW-2 is based on the 1967-1968 Italian-built Clyde McCoy Wahs.

Some of the key features of the XW-2 include:

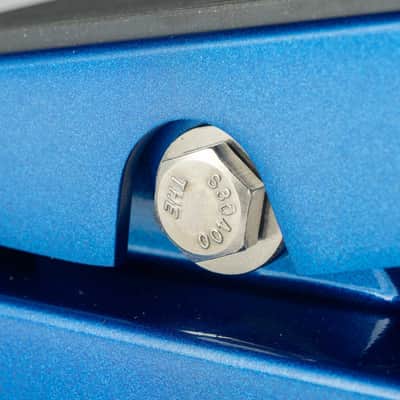

ADJUSTABLE PEDAL TORSION — Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle.

LED INDICATOR — The LED indicator is located at the top of the Xotic XW-2 Wah and lights up when the pedal is on. One unique feature of the Xotic XW-2 Wah is the LED will flash if the battery power falls below 50% and indicates that it is time to change the battery.

DC JACK — 2.1mm x 5.5mm 9VDC — Negative Center. When an external power supply is used, the battery is disconnected from the circuit. When using a battery, the life of the battery can be extended if you unplug the input when the effect is not in use for long periods of time. Battery access is through the removal of bottom plate (4 screws).

Dimensions (W/D/H): D 8.27” (210mm) W 3.94” (100mm) H 2.64 (67mm)
Weight: 2.16lb. (980g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 1M ohm
Output Impedance: 10k ohm
Nominal Input Signal Level: -20 dBV
Nominal Output Signal Level: -20 dBV
