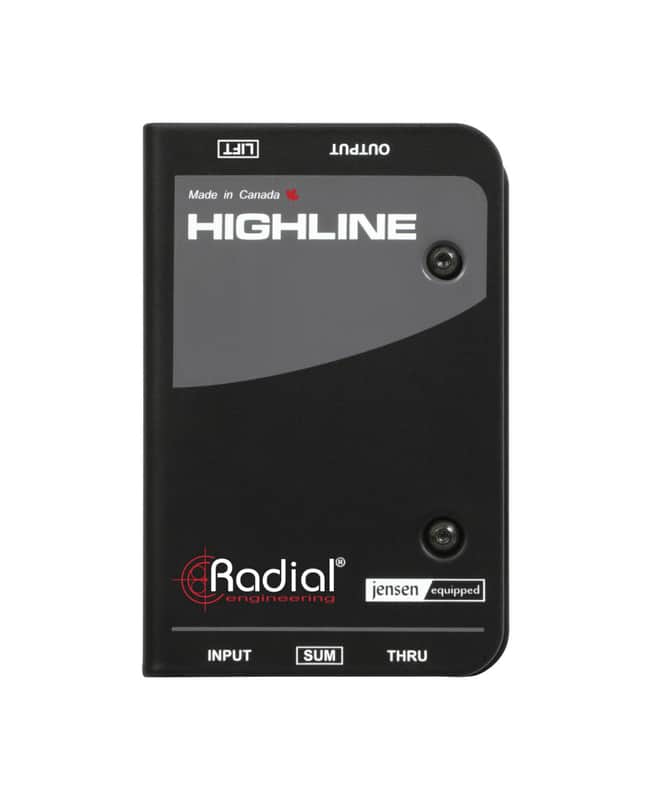

Presenting the new Radial Engineering Highline Passive Line Isolator.

The Highline is a line isolator that is specifically designed to address the needs of instrumentalists who use amp modelers, allowing them to seamlessly connect to a PA or a recording system while maintaining their full signal integrity with no added noise or distortion. The Highline features a premium Jensen 1:1 transformer, which retains the full volume level from the pedalboard to the PA, while also providing galvanic isolation that eliminates ground loop noise for a clean and noise-free signal. The balanced output of the Highline allows for long cable runs to the PA, and it also blocks phantom power so it never reaches the pedalboard. The Highline can also accept stereo inputs and sum them down to mono with the use of the Sum switch.

Guitarists and bassists who use utilize amp modelers on their pedalboard have a unique set of problems: While amp sims can produce line-level outputs, they often still use 1/4" unbalanced connectors that won't support long cable runs without degrading the tone of the instrument, and they are particularly susceptible to noise from ground loops when connected directly to the PA. The Highline addresses these issues by inserting a 1:1 transformer into the signal path, which provides isolation to reduce noise, protects against phantom power, and keeps the signal at line level for direct connection to the PA system.

Audio circuit type: Passive, transformer based
Transformer: JT-11-YMPC
Number of channels: Single channel (mono)
Frequency response: 20Hz ~ 20KHz (± 0.05dB)
Total harmonic distortion: <0.03% from 20Hz ~ 20kHz / -10dB, 0.0002 @1kHz / -10dB
Phase Deviation: ±0.3° from 20Hz ~ 20kHz / -10dB
Signal to Noise: 110dB

Features

Ground lift
Extras: Input Sum, Thru Sum

General

Construction: 14-gauge steel outer shell & 16-gauge chassis
Finish: Durable powder coat
Size (L x W x D): 4.25" x 2.75" x 1.75" (108mm x 70mm x 44mm)
Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
