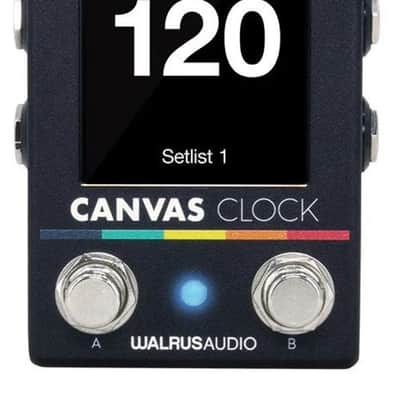

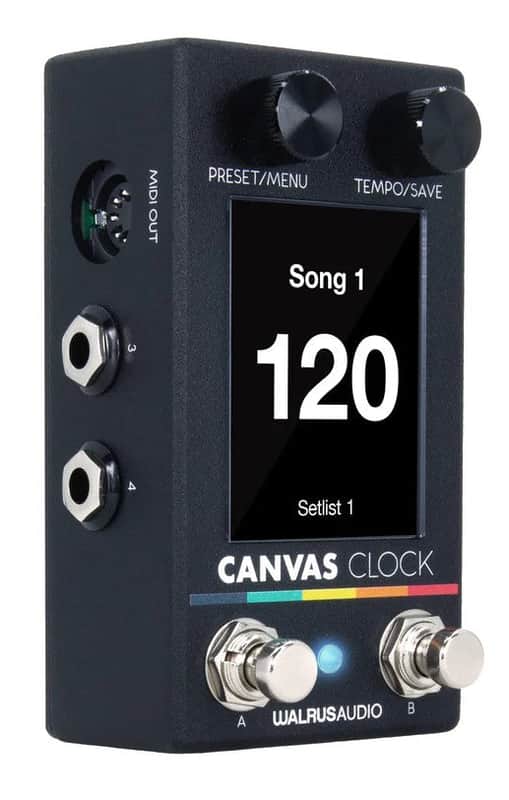

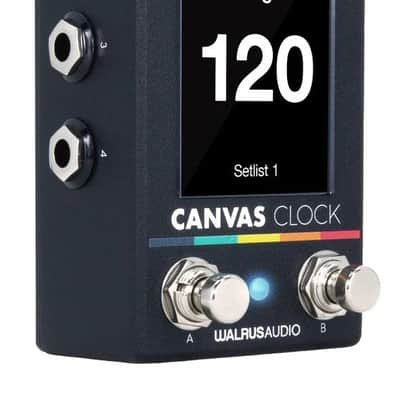

Walrus Audio Canvas Clock

Sync all your time-based devices, seamlessly move through preset setlists, and simplify tempo matching with the Canvas Clock! Designed for any kind of rig you throw at it and deeply customizable, users can put their full trust in the Clock to be an all-in-one tempo solution for their board.

The Canvas Clock can interface to any device in your rig that accepts clock signal, whether MIDI, (via the ⅛ in or 5-pin MIDI ports) or analog (via the ¼ in jacks). Clock will send time signals for both MIDI and analog devices, and will continue to do so as you move through your song list or manually adjust the tempo. As you edit, save, and recall songs in real-time or via the online editor at walrusaudio.io, Clock will send your specific settings for whichever song you are currently on out to all of the time-based devices you are connected to.

Features

• Seamlessly sync all time-based devices devices in your rig.
• Effortlessly move through preset setlists and simplify tempo matching.
• Sends MIDI and analog clock signals simultaneously for full-rig control.
• Save, edit, and recall songs in real-time or via Canvas Clock Editor walrusaudio.io.
• MIDI 5-Pin DIN, 1/8" MIDI, and analog 1/4" jacks for versatile connectivity.
• Assign tempo out, CV Out, Switch Input, and Expression into any of the four 1/4" jacks.
• Customizable footswitches to advance/go back through songs and setlists, toggle metronome start/stop, and global tap tempo .
• Dedicated metronome output for live monitoring or FOH.

Specifications

Power:

• 9VDC, 300mA,

• Center-Negative, 2.1mm center pin OR Powered via USB-C

• The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.

Computer Connectivity: Requires Chrome web browser on either Windows or Mac OS. Visit walrusaudio.io to use the Canvas editor and get firmware updates when available.

Enclosure: 2.3" x 2.96" x 4.84" including jacks & knobs

Hardware
• Preset/Menu Encoder and Switch

• Tempo/Save Encoder and Switch

• Footswitch A

• Footswitch B

• ¼” Jack 1 (TS or TRS)

• ¼” Jack 2 (TS or TRS)

• ¼” Jack 3 (TS or TRS)

• ¼” Jack 4 (TS or TRS)

• MIDI In/Out (5-pin DIN)

• MIDI In/Out (1/8th” TRS cable)

• Sync (1/8th” TRS cable)

• Met Out (1/8th” TRS cable - not intended to drive headphones, please plug into high impedance input)

• USB-C
