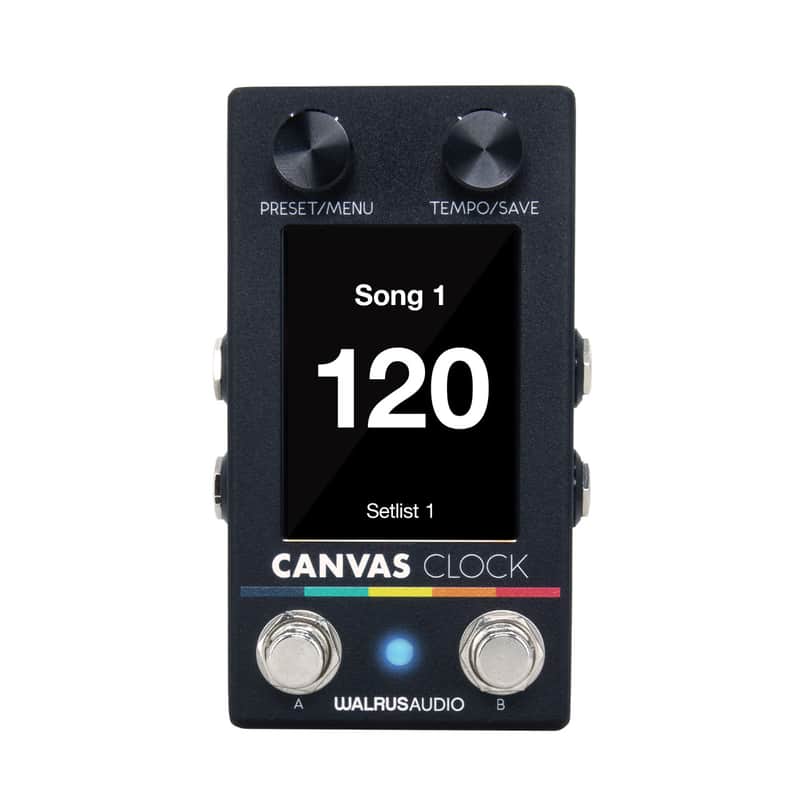

The Walrus Audio Canvas MIDI Clock is a powerful, all-in-one solution for syncing time-based effects and streamlining setlist navigation. Designed for both studio and live performance, the Canvas Clock offers comprehensive MIDI and analog clock control, ensuring all your delay, modulation, and rhythm-based pedals stay in sync.

With four assignable 1/4" jacks, the Canvas Clock is more than just a tempo controller-it can send external tap tempos, CV signals, function as a switch input for additional foot control, or even integrate with an expression pedal for real-time parameter adjustments via MIDI. The onboard metronome can be routed to front-of-house or a monitor, making it an essential tool for live performance.

For full MIDI integration, the Canvas Clock Editor (accessible via USB-C) allows deep customization, including setlist organization, song presets, BPM assignments, MIDI macros, and firmware updates. With 128 song slots and the ability to store and send multiple MIDI CC and PC messages, this pedal is built for players who need precise control over their entire rig.

Whether you need a simple tap tempo sync or a fully-programmable MIDI command center, the Walrus Audio Canvas Clock is ready to take control.

Specifications:

- Power Requirement: 9VDC, 300mA (Center-negative, 2.1mm center pin) or USB-C
- Computer Connectivity: USB-C (Requires Chrome web browser for Canvas Clock Editor)
- Preset Slots: 128 songs with customizable BPM, MIDI Macros, and setlist organization
- Clock Outputs: MIDI Clock (5-pin DIN, 1/8" TRS), Analog Clock (1/4" TS)
- Assignable 1/4" Jacks:
- Tap Tempo Out
- CV (Control Voltage) Out
- External Footswitch Input (Tip/Ring Assignable)
- Expression Input (MIDI CC control)
- Metronome Output: 1/8" TRS (For FOH or Monitor Use)
- Sync Jack: Configurable as Clock Input or Output (1/8" TRS)
- MIDI Integration:
- 5-pin DIN MIDI In/Out
- 1/8" TRS MIDI In/Out
- Supports MIDI CC & PC messaging
- Enclosure Dimensions: 2.3" x 2.96" x 4.84"
