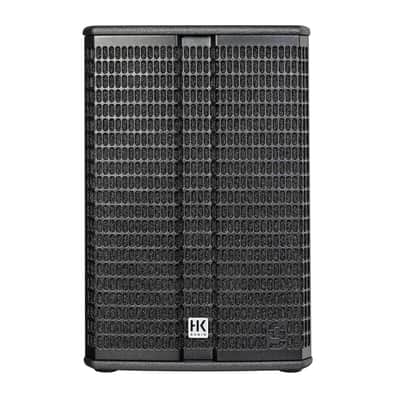

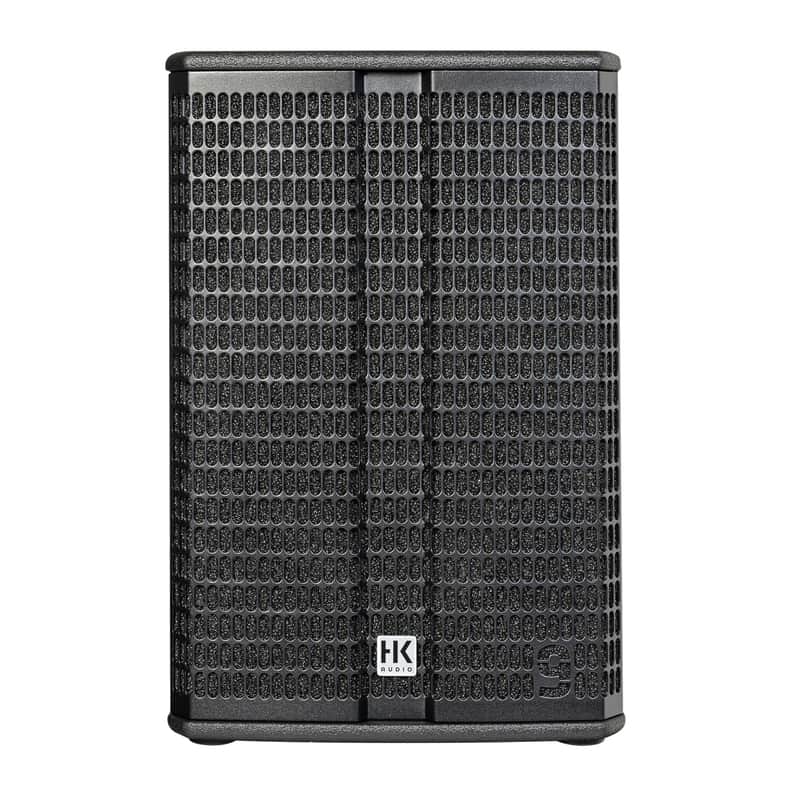

HK Audio Linear 9 110XA | 10" 2-way Multi-Functional Powered Loudspeaker. New with Full Warranty!
This seller has not set a shipping cost for Denmark. Please contact them to ask about shipping.
Our users rate Reverb
Description
The dispersion angle of each speaker’s horn is optimised for its intended use. The LINEAR 9 110 XA 10" speaker is equipped with an 80° x 60° wide dispersion horn for homogeneous near-field dispersion. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.
- Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 129 dB half space
- Frequency response +/-3 dB: 70 Hz – 19 kHz
- Frequency response -10 dB: 65 Hz – 20 kHz
- Power amp output (RMS): 700 W
- Amp type: Class D - biamped
- LF driver: N/A
- Low-/mid speaker: 1x 10", 2.5" voice coil
- HF driver: 1", 1.4" voice coil
- Horn directivity: 80° x 60° CD horn, rotatable
- Active crossover frequency: 2 kHz FIR X-over with 60 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR balanced
- Network port: Ethercon RJ45, 1x In, 1x Thru
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, macOS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
- Power consuption: 1 A / 100–240 V nominal according to EN 62368-1
- Clustering angle: N/A
- Angles up (Monitor angle): 30°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 5x M8 (AP-8)
- Carrying handles: 2x SingleGrip
- Housing: Birch multiplex
- Finish: PU coating black
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"
- Weight: 16.5 kg / 36.4 lbs
