Where Performance Meets Possibility

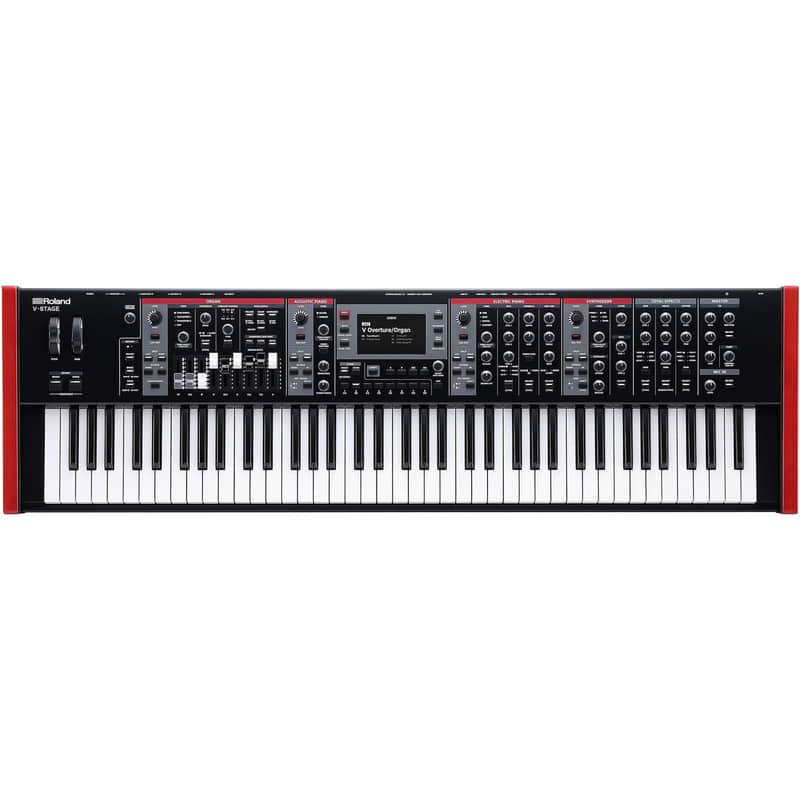

The Roland VSTAGE 76 elevates the allinone gigging keyboard to another dimension of creative power and control, fusing Roland's premium sound technologies with a speedy workflow purposebuilt for the needs of serious pro players. Experience a world of sonic expression with four advanced sound engines, elegantly intuitive interfaces, and exceptional playability for the best performance every time.

Acclaimed Roland Sounds
VSTAGE keyboards offer four independent sound engines featuring the best of Roland's behavior modeling and sound technologies. Discrete sections provide dedicated controls for seamless operation while performing.

Acoustic Piano: Rich, dynamic pianos powered by VPiano technology, including two concert grands, an upright piano, and a felttreated model for a unique soft sound. Highspeed DSP eliminates the roadblocks of systems based solely on samples, providing natural response, unlimited expression, and full polyphony.
Electric Piano: This EP engine includes tine, reed, digital piano, and clavinet instruments crafted with the latest SuperNATURAL advancements. Split, octave, detune, and key touch controls are available, plus a Sound Lift knob for cutting through dense band mixes. Selectable MFX, a tremolo effect, and an amp sim are also within easy reach.
Organ: This section features a threelayer console organ powered by Roland's renowned Virtual Tone Wheel tech, two classic transistor models, and a pipe organ. Harmonic bars and percussion controls provide an authentic organ experience, complemented by overdrive, vibrato/chorus, and a rotary speaker effect with variable speed and mic positioning.
SynthesizerExplore over 400 onboard ZENCore tones to cover every musical style. Two simultaneous parts are available with fast soundshaping via attack, release, filter, and other controls. VSTAGE supports ZENCore patch and sound options on Roland Cloud, including Model Expansions based on the JUPITER8, JUNO106, and other vintage Roland analog synths (free downloads for registered owners).

Streamlined Stage Workflow
The ergonomic VSTAGE interface is designed to make music in the moment. Adjust tones on the fly with the intuitive panel layout, sleek color LCD, and clearly labeled toplevel controls. Enhance sounds with the Total Effects section and a large selection of effects from the Roland library. And use the Master section's EQ and compressor to quickly finetune the overall output for every venue you play in.

GigReady Command
Organize and recall sounds with 512 scenes, each containing an entire keyboard setup with up to five tones and all available effects. Build chains of up to 128 scenes for rapidfire selection through your stage setlist, complete with smooth, uninterrupted sound during transitions. Four rearpanel jacks support numerous floorcontrol options, including hold/damper pedals, footswitches, and expression pedals. Two dedicated USB inputs are also available to connect external MIDI controllers such as the Roland A49 or APRO series.

Inspiring Playability
VSTAGE models feature supremely playable Roland keyboards that fully connect you to each instrument's premium sounds. Or choose VSTAGE 76 and a newly developed 76note semiweighted waterfall keyboard for a traditional organ feel.

Comprehensive Connectivity
Get connected with the house PA and stage monitors via balanced XLR and 1/4inch stereo main outputs and two balanced sub outputs that can be customized for discrete sound feeds. Integrate with laptops and mobile devices on stage with onboard USBC classcompliant audio/MIDI. Plug in an XLR mic to sing along. Or use the stereo line input to mix in an external instrument such as a drum machine or keyboard.

Features:

• Premium keyboards designed for professional stage performers
• Four independent sound engines powered by Roland's most advanced modeling and sound technologies: Acoustic Piano, Electric Piano, Organ, and Synthesizer
• Acoustic Piano engine developed with VPiano technology; includes two concert grands, an upright piano, a felt piano, and Piano Designer tools for deep sound customization
• Electric Piano engine with the latest SuperNATURAL advancements; includes tine, reed, digital piano, and clavinet types with customizable sound parameters, adjustable key touch, and dedicated EP effects
• Organ section with threelayer Virtual Tone Wheel technology, two vintage transistor types, a pipe organ type, and overdrive and rotary speaker effects
• ZENCore Synthesizer engine with over 400 onboard tones and support for SDZ Sound Packs and Model
• Expansions on Roland Cloud (Model Expansion titles are free downloads for registered VSTAGE owners)
• Intuitive panel layout with discrete sections and handson controls for the sound engines and effects
• Store and recall complete keyboard setups with 512 scenes
• Easily manage complex setlists with 128 scene chains
• Total Effects section with independent delay and reverb plus legendary Roland multieffects
• Master section with compressor and EQ for shaping the sound output for different venues
• Comprehensive audio connectivity with balanced XLR and 1/4inch main stereo outputs and two balanced sub outputs
• XLR microphone input with panel volume control
• Stereo line inputs for external sources
• Classcompliant USBC audio/MIDI interface for working with music software on computers and mobile devices
• USB memory port for data import and backup
• Two USB device ports for connecting MIDI controllers such as the Roland A49 or APRO series
• MIDI I/O and four jacks for hold/damper pedals, footswitches, and expression pedals
• Two models: VSTAGE 88 with 88 weighted hammeraction keys and VSTAGE 76 with 76 semiweighted keys and organstyle waterfall feel

Specs:

• Keyboard: VSTAGE76 Waterfall semiweighted keyboard and channel aftertouch
• Sound Generator Section:
• VTW Organ (Organ Part)
• VPiano Technology (Acoustic Piano Part)
• SuperNATURAL Electric Piano (Electric Piano Part)
• ZENcore (Synth Part A/B)
• Scenes: 512 (including preloaded registrations)
• Scene Chains: 128
• Effects:
• MultiEffects: 16 systems, 93 types
• Chorus: 9 types
• Reverb: 7 types
• External memory: USB flash drive (supports USB 2.0 HiSpeed flash memory: Sold separately)
• Controllers:
• Assignable Wheel x 2
• Assignable Switch x 2
• Display: Graphic LCD 4.3 inch
• Connectors:
• PHONES jack: Stereo 1/4inch phone type
• MAIN OUT (L, R) connectors: XLR type
• MAIN OUT (L/MONO, R) jacks: 1/4inch TRS phone type
• SUB OUT (L, R) jacks: 1/4inch TRS phone type
• LINE INPUT (L/MONO, R) jacks: 1/4inch phone type jacks
• MIC INPUT connector: XLR type
• PEDAL (HOLD,CTRL1,CTRL2,CTRL3) jacks: 1/4inch TRS phone type
• MIDI (IN, OUT1, OUT2/THRU) connectors
• USB COMPUTER port: USB TypeC(R) (Audio/MIDI Class Compliant)
• USB MEMORY port: USB A
• 2 x External Device Port(USB A):Roland A49 or an APRO series MIDI Controller can be connected. *
• Operation is not guaranteed if a generic MIDI device is connected.
• AC IN jack
• Power Consumption: 30 W
• Power consumption when in OFF mode (when the power automatically turns off): 0.3 W
• Dimensions: VSTAGE76
• 1,181 (W) x *342 (D) x 109 (H) mm
• 461/2 (W) x 131/2 (D) x 45/16 (H) inches
• Weight (excluding AC adaptor): VSTAGE76 33 lbs 9 oz (15.2 kg)
• Accessories: Owner's Manual, Power cord
