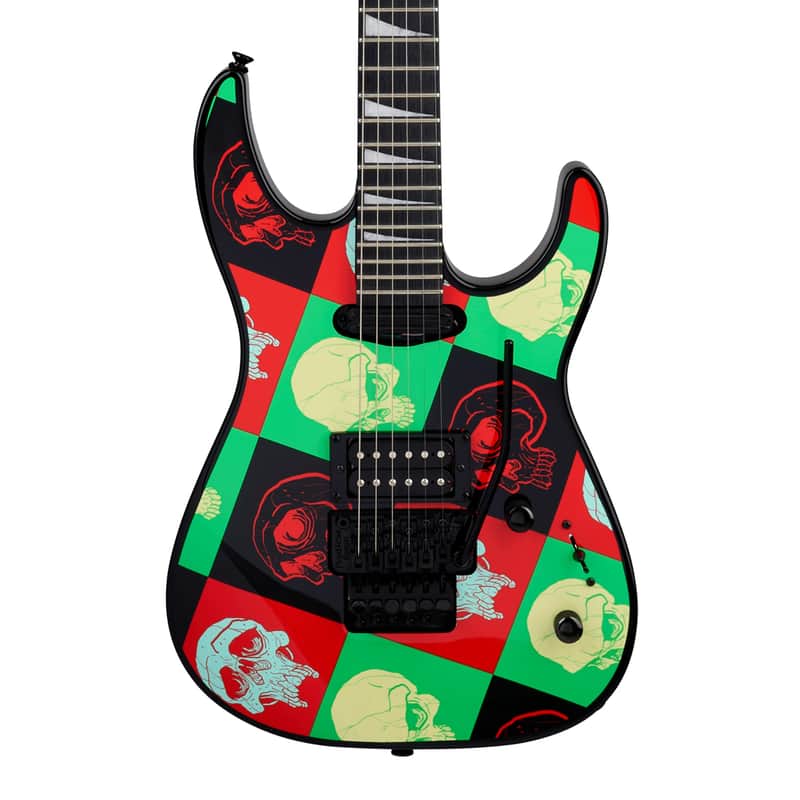

Distinctive and affordable, Jackson’s X Series Dinky models are built for speed and comfort! The Jackson X Series Dinky DK1A DX is a venerable double-cutaway workhorse that offers many fine features desired by today’s shredders.

This Dinky model features an ergonomically curved nyatoh body and bolt-on maple neck with graphite reinforcement for rock-solid stability and tilt-back scarf joint headstock. Hosting 24 jumbo frets, its 12”-16” compound radius amaranth fingerboard curves more dramatically at the nut for easy chording and flattens out as it approaches the neck joint for low-action bends without fretting out.

Jackson high-output humbucking pickup and rail-style neck pickup power this metal beast with full-bodied tone ideal for brazen lead work or assertive rhythms runs. A Floyd Rose Special double-locking tremolo bridge system provides superior string stability and dynamic tremolo action.

Floyd Rose Special Double-Locking Tremolo Bridge System

Recessed for picking-hand comfort, the Floyd Rose Special double-locking tremolo features zinc alloy saddles and a zinc alloy sustain block. The double-locking design allows you to lock your guitar in tune at the nut and at the bridge, resulting in excellent tuning stability and sustain throughout your most aggressive pull-ups and dive bombs.

12"-16" compound radius amaranth fingerboard

Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the amaranth fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.

Features

• Nyatoh body
• bolt-on maple neck with graphite reinforcement
• 24 jumbo frets
• 12”-16” compound radius amaranth fingerboard
• Jackson high-output humbucking pickup and rail-style neck pickup
• single volume and tone control
• 3-way blade switch
• Floyd Rose Special double-locking tremolo bridge
• Series : X Series
• Orientation : Right-Hand
• Color : Warhol
• Case not included

Neck

• Headstock : Jackson Pointed 6-In-Line
• Headstock Binding : None
• Neck Material : Maple
• Neck Finish : Satin
• Neck Construction : Bolt-On with Graphite Reinforcement and Scarf Joint
• Fingerboard Radius : 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material : Amaranth
• Position Inlays : Pearloid Sharkfin
• Side Dots : White
• Number of Frets : 24
• Truss Rod : Dual-Action Head Adjust
• String Nut : Floyd Rose Locking
• Nut Width1.6875" (42.86 mm)
• Nut Material : Floyd Rose Locking

Body

• Body : Nyatoh
• Body Finish : Gloss
• Body Shape : Dinky
• Body Material : Nyatoh

Measurements

• Dimensions : 4.00x20.00x44.00 IN
• Fret Size : Jumbo
• Scale Length : 25.5" (64.77 cm)

Hardware

• Bridge : Floyd Rose Special Double-Locking Tremolo (Recessed)
• Pickup Covers : Black
• Control Knobs :Dome-Style
• Switch Tip : Black
• Hardware Finish : Black
• Tuning Machines : Jackson Sealed Die-Cast
• Strings : Nickel Plated Steel (.009-.042 Gauges)
• Tremolo Arm : Floyd Rose Special Locking

Electronics

• Bridge Pickup : Jackson High-Output Humbucking
• Neck Pickup : Jackson High-Output Mini Rail Humbucking
• Pickup Configuration : HS
• Controls : Volume, Tone
• Switching : 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Miscellaneous

• Style : 2 Humbucking
