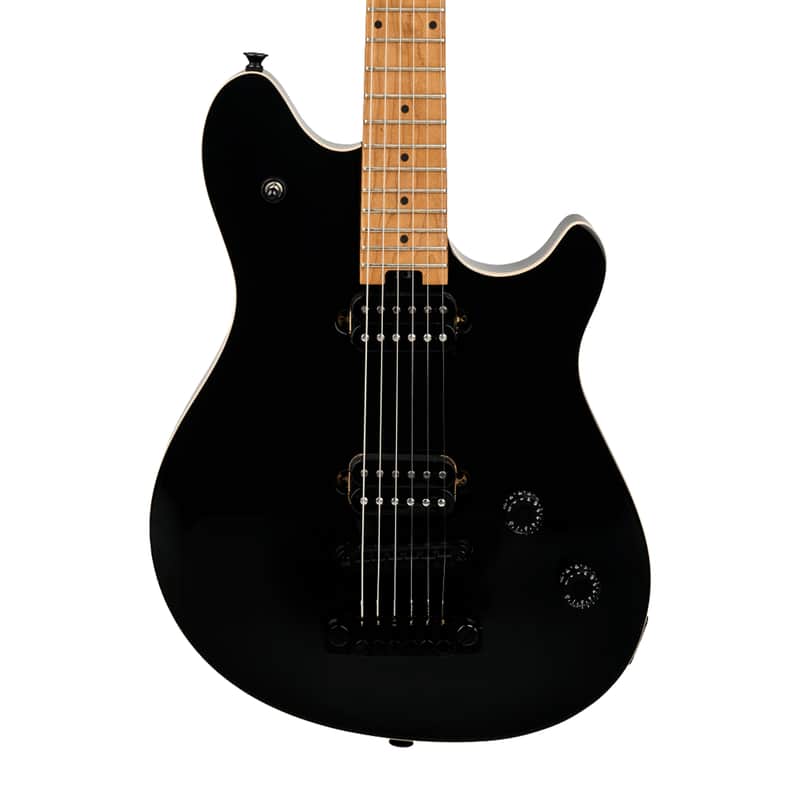

Road-tested in arenas around the world, the Wolfgang Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special T.O.M features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom-designed EVH Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH compensated bridge and tailpeice w/ fine tuners keep you solid and in the mix. The volume knob with treble bleed circuit has a 500K EVH Bourns low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

• Basswood Archtop Body w/ Single ply binding
• Standard T.O.M style bridge
• Finer Tuner Adjustment Tailpeice
• Bolt on baked maple neck
• 22 Jumbo frets
• GraphTech TUSQ nut
• 12-16” Bakes Maple fingerboard w/ black dots
• Thumb wheel at neck butt for adjustment
• Wolfgang Bridge and Neck pickups
• EVH/Bourns Low Friction and High Friction pots
• Black Speed Knobs

Features

• Series : Wolfgang Special
• Orientation : Right-Hand
• Color : Gloss Black
• Case not included

Neck

• Headstock : EVH Wolfgang
• Neck Material : Quartersawn Baked Maple
• Neck Finish : Hand-Rubbed Satin Urethane
• Neck Shape : Wolfgang Backshape
• Neck Construction : Bolt-On with Graphite Reinforcement
• Neck Thickness : .805" at 3rd & .890" at 12th Fret
• Fingerboard Radius : 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material : Baked Maple
• Position Inlays : Black Dot
• Side Dots : Black
• Number of Frets : 22
• String Nut : Graph Tech TUSQ XL
• Nut Width : 1.625" (41.3 mm)
• Nut Material : Graph Tech TUSQ XL

Body

• Body : Basswood
• Body Finish : Gloss Polyester
• Body Shape : Wolfgang
• Body Binding : 1-Ply Black
• Body Material : Basswood

Hardware

• Bridge : Fully Adjustable Compensated Bridge with Fine Tuner tailpiece
• Pickup Covers : Black
• Control Knobs : Black Speed Knobs
• Switch Tip : Black
• Hardware Finish : Black
• Tuning Machines : EVH-Branded
• Strings : EVH Nickel Plated Steel (.009-.042 Gauges)

Electronics

• Bridge Pickup : Direct Mount EVH Wolfgang Humbucking
• Neck Pickup : Direct Mount EVH Wolfgang Humbucking
• Pickup Configuration : HH
• Controls : Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Switching : 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• Dimensions : 4.50x14.50x41.10 IN
• Fret Size : Jumbo
• Scale Length : 25.5" (64.77 cm)
