Wizard II 3pc Maple neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

Nyatoh body

Nyatoh used as the body wood provides a rich mid-low end.

DiMarzio D Activator pickups

DiMarzio D Activator pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.

Gotoh machine heads

Gotoh machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Edge-Zero II tremolo

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

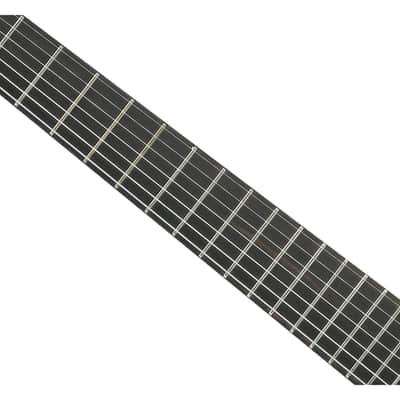

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Switching System

When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.

Controls

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.

Features

• Neck type : Wizard II-7 / 3pc Maple neck
• Top/back/body : Nyatoh body
• Fretboard : Ebony fretboard
• Fret : Jumbo frets
• Number of frets : 24
• Bridge : Edge-Zero II-7 bridge
• String space : 10.8mm
• Neck pickup : DiMarzio D Activator 7 (H) neck pickup (Passive/Ceramic)
• Bridge pickup : DiMarzio D Activator 7 (H) bridge pickup (Passive/Ceramic)
• Factory tuning : 1E,2B,3G,4D,5A,6E,7B
• Strings : D'Addario EXL120-7
• String gauge : .009/.011/.016/.024/.032/.042/.054
• Nut : Locking nut
• hardware color : Black
• Case : Not Included

Neck Dimensions

• Scale : 648mm/25.5"
• a : Width : 48mm at NUT
• b : Width : 68mm at 24F
• c : Thickness : 19mm at 1F
• d : Thickness : 21mm at 12F
• Radius : 400mmR

Other Features

• Gotoh machine heads
• dyna-MIX10 switching system w/Alter Switch
• Luminescent side dot inlay
