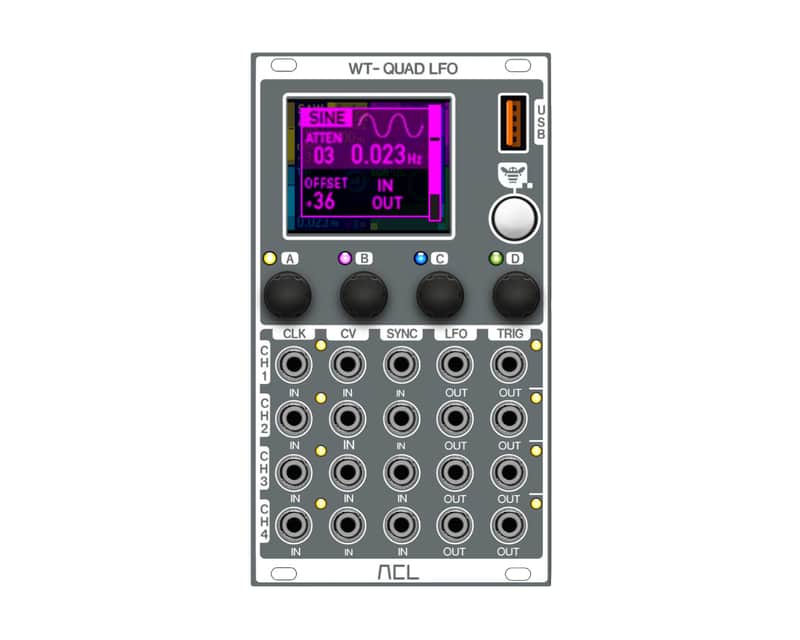

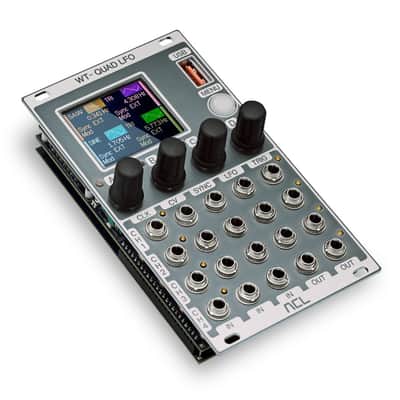

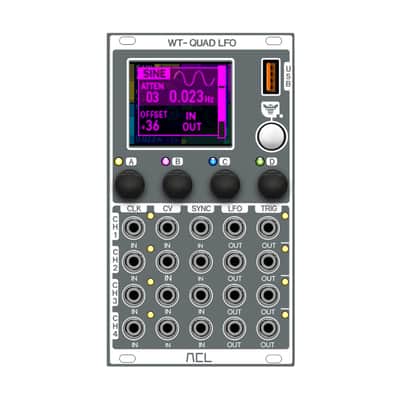

ACL WT-Quad LFO

The WT-QUAD-LFO module is made up of four individual, digital, wavetable based low frequency oscillators (LFO) with an easy and intuitive user interface featuring a 1.8” OLED colour display.
It can be updated easily by inserting a flash drive with the firmware files in the USB port on the front panel. The oscillators and their respective controls, inputs and outputs are organised in four channels. The frequency of each oscillator can be linearly or exponentially (1V / Oct.) controlled through the voltage applied to the corresponding CV input.
Each LFO channel can output one of the predefined waveforms (including sawtooth, ramp, square, sine, triangle), morph between two different waveforms or generate a random waveform. It can be externally reset through the Sync input.
Each Trigger output can be set to output a specific phase of the corresponding waveform.
The module offers cross frequency modulation (FM) and internal sync between LFO channels. It features also phase distortion and phase spreading of the outputs, including a classical quadrature mode (90° phase spread). Frequency relationships between the four LFOs can also be set.

Hardware
* 4x CV inputs * 4x Sync inputs * 4x Clock inputs * 4x LFO outputs * 4x Trigger outputs * 1.8 " OLED Display with 160 x 128 pixel * 4 x push encoder * USB port for firmware update

• 14 HP 35 mm deep

ClockGenerator CVModulation Digital FunctionGenerator LFO Oscillator Quad Utility
