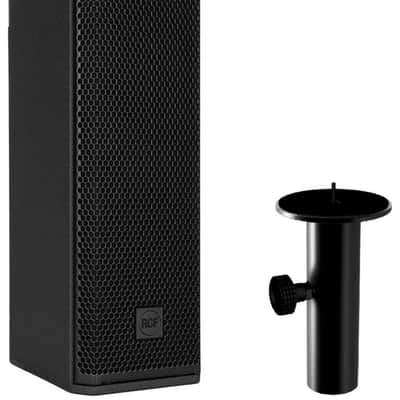

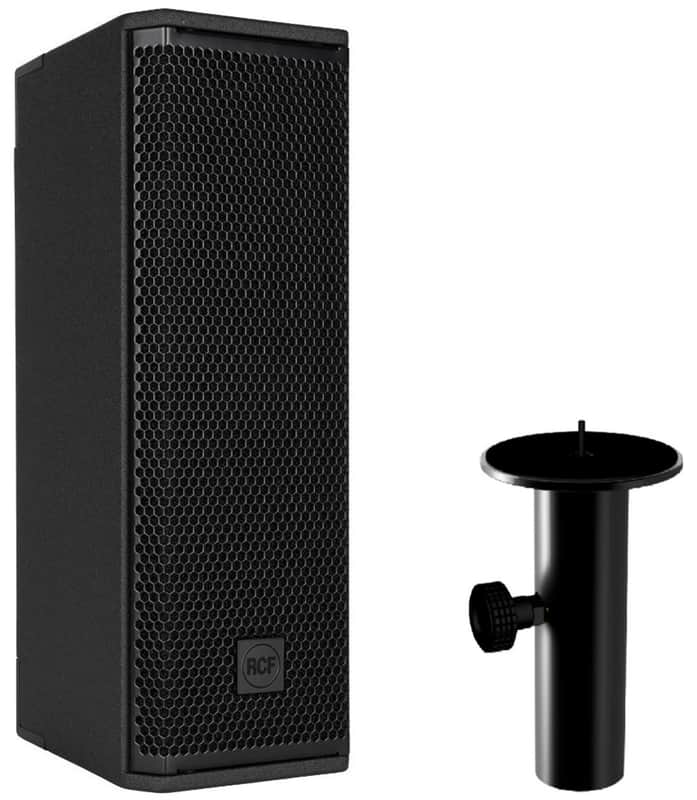

RCF NXL 14-A COMPACT 6" ACTIVE 2-Way Point Source Speaker 2100W + + RCF PM-KIT TT 515 Stand Adapter

Package Includes:

• RCF NXL 14-A COMPACT 2100W ACTIVE 2-WAY POINT SOURCE SPEAKER (Black)

• RCF PM-KIT TT 515 Pole Mount / Stand Adapter Kit For TT 515-A Active Speaker

RCF NXL 14-A COMPACT 2100W ACTIVE 2-WAY POINT SOURCE SPEAKER (Black)

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black  finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

Features

• 128 dB max SPL

• 2100W Class-D Bi-Amplification

• 70-20000 Hz linear frequency range

• 1.75" PKX / Neodymium Compression Driver

• 2 x 6" High Power Neodymium Woofers

• Rotatable 100° x 70° TRW Waveguide

• FiRPHASE and Bass Motion Control

Specifications

• Frequency Response : 70 Hz ÷ 20000 Hz

• Max SPL @ 1m : 128 dB

• Horizontal coverage angle : 100°

• Vertical coverage angle : 70°

• Compression Driver : 1 x 1.0'' neo, 1.75'' v.c

• Woofer : 2 x 6.0'' neo, 2.0'' v.c

• Input signal : bal/unbal

• Input connectors : Combo XLR/Jack

• Output connectors : XLR

• Input sensitivity : -2 dBu/+4 dBu

• Crossover Frequencies : 1200

• Protections : Excurs.

• Limiter : Fast Limiter

• Controls : Linear/Boost/Stage Presets, Volume.

• Total Power : 2100 W Peak

• High frequencies : 700 W Peak

• Low frequencies : 1400 W Peak

• Cooling : Convection

• Connections : Powercon TRUE1 TOP IN/OUT

• Safety agency : CE compliant

• Cabinet/Case Material : Plywood

• Handles : 2 TOP AND BOTTOMPole mount/Cap : Quick-fit socket

• Grille : Steel

• Color : Black - RAL 9005

• Height : 567 mm / 22.32 inches

• Width : 197 mm / 7.76 inches

• Depth : 270 mm / 10.63 inches

• Weight : 12.8 kg / 28.22 lbs

• Package Height : 600 mm / 23.62 inches

• Package Width : 232 mm / 9.13 inches

• Package Depth : 302 mm / 11.89 inches

• Package Weight : 14.6 kg / 32.19 lbs


  UPC

• 220-240V, 8024530022006

• 100-120V, 8024530022204
