Next generation ADAT conversion

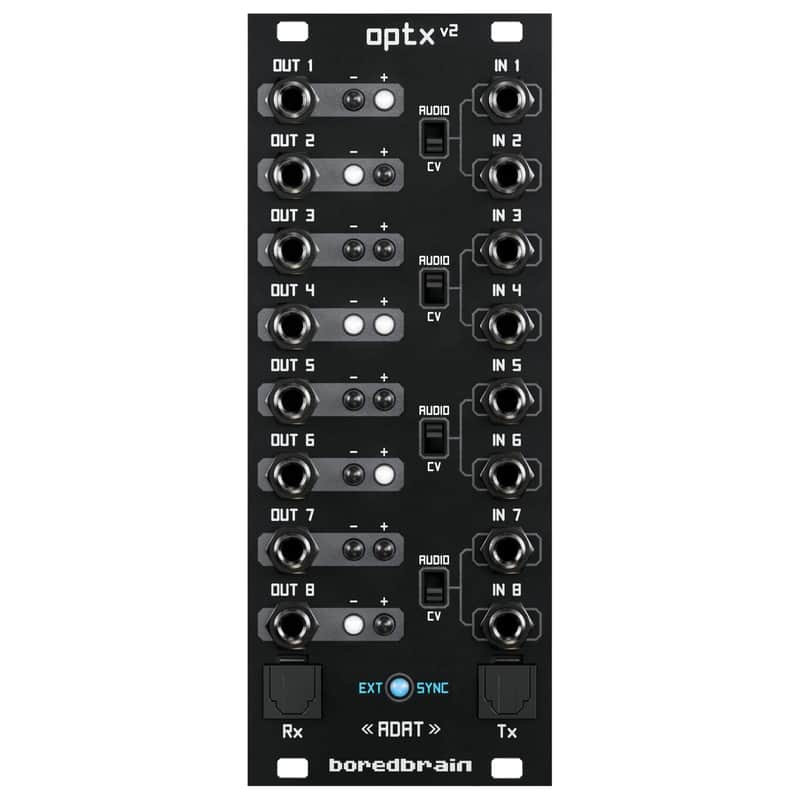

Optx v2 is a pro-quality ADAT lightpipe converter for eurorack modular synthesizers. The DC-coupled module can encode and decode audio signals with extremely low noise, and CV signals with near-zero offset. Additionally, on-board sample clock allows for one-way ADAT output and the ability to be used standalone to interconnect eurorack systems.

FEATURES

• Bi-directional ADAT lightpipe encoding/decoding of 8 analog inputs/outputs
• Switchable input mode (in pairs) powered by high-performance Cirrus Logic converters
• AUDIO input mode ensures the highest fidelity possible with ultra-low noise
• Self-calibrating CV input mode provides exceptional accuracy and near-zero offset (DC-coupled)
• Precision DC-coupled outputs support both audio and CV signals
• Internal sample clock permits one-way operation without ADAT input and standalone interconnection of two Optx modules
• Dual LEDs on each output indicate signal strength and polarity

SPECIFICATIONS

• Width: 10 HP
• Depth: 1.5 in (38 mm)
• Weight: 4 oz (113 g)
• Resolution: 24 bit, 44.1/48 kHz
• Max I/O Level: ±10 V (20 Vpp)
• Input impedance: 50 kΩ
• Input SNR: > 103 dB
• Power (1): +12 V 260 mA, -12 V 130 mA
• Power (2): +12 V 130 mA, -12 V 130 mA, +5 V 270 mA
