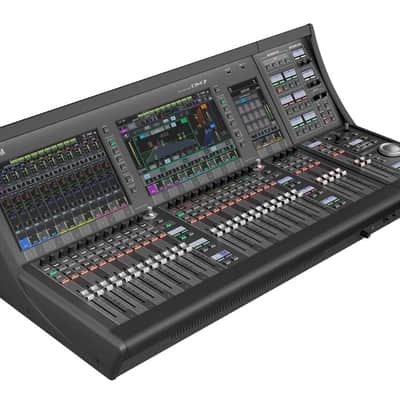

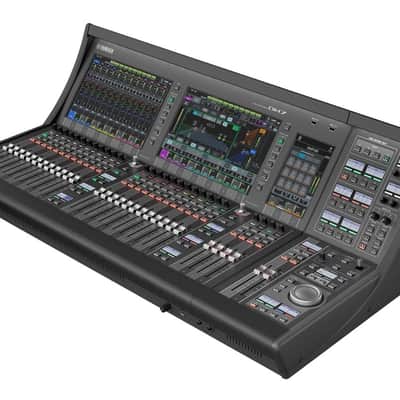

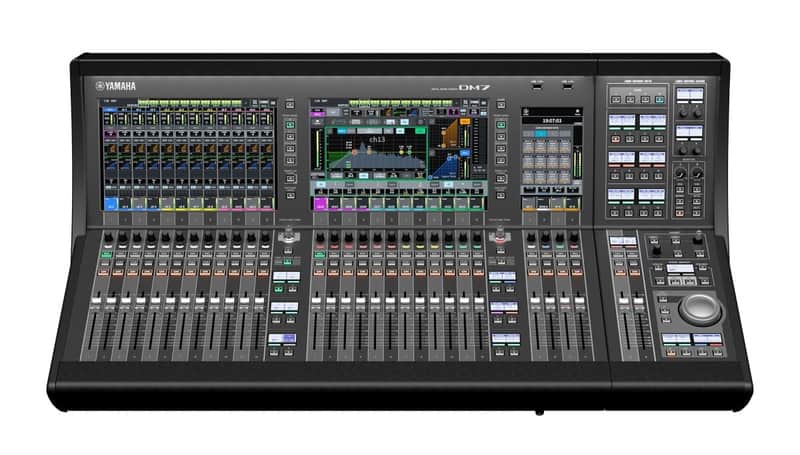

Yamaha DM7-EX 120-Channel Digital Mixing Console with Expansion Controller

<p>The Yamaha DM7-EX combines the power of the DM7 120-channel Dante-enabled digital mixing console with the CTL-DM7 expansion controller, delivering exceptional versatility and efficiency for live sound, theater, broadcast, and corporate A/V applications. The DM7 features a dual-bay design with an intuitive user interface, including two 12-inch touchscreens, a 7-inch touchscreen, 28 motorized faders, and touch-and-turn knobs for streamlined navigation. It delivers pristine 96kHz audio quality, supported by 32 premium mic preamps and 16 analog outputs, alongside an 18 x 18 USB audio interface and 144 x 144 Dante connectivity for easy integration with your workflow.</p><p>The DM7 includes Yamaha&#039;s legendary digital effects heritage, DAW remote capabilities, an internal dual power supply, and innovative AI assist functions for advanced control. The split mode boosts efficiency for complex applications, while the CTL-DM7 expansion enhances hands-on operation with 48 user-defined knobs, a programmable jog wheel, assignable faders, and quick access to immersive, surround, and scene controls. The DM7-EX provides unmatched flexibility, effortless workflow optimization, and crystal-clear sound quality, making it a powerhouse for any professional audio environment.</p><p>Featuring a convenient DAW remote function, an internal dual power supply, and AI assist functions, the DM7-EX stands out with a unique combination of advanced capabilities, an ideal choice for a diverse range of professional applications, including live sound, theatrical productions, broadcast environments, and corporate AV.</p><h3>Includes</h3><ul><li>DM7 Digital Mixing Console</li><li>DM7 Control - Expansion Controller</li><li>Owner&#039;s Manuals for DM7 and CTL-DM7</li><li>AC Power Cord x3</li><li>Dust Cover</li><li>Steinberg Nuendo Live (DAW Software)</li><li>Dante Virtual Soundcard Token Leaflet</li><li>DEK-DM7-BR License ID Leaflet</li><li>DEK-DM7-TH License ID Leaflet</li></ul><h3>Features</h3><ul><li>Renowned Yamaha Sound with 96kHz sample rate</li><li>Screens: 2 x High-Res Multi-touch 12? + 1 x High-Res 7?</li><li>Faders: 12+ 12 + 4 + 2</li><li>Mixable Channels: 120 inputs</li><li>Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue</li><li>Analog i/o: 32 x 16</li><li>Digital: 2 x AES In/Out</li><li>PY Slot i/o: 64x64 @96k</li><li>Dante: 144 x 144@96k</li><li>USB-C: 18x18 Audio Interface ? Works with VST RACK</li><li>Time Code In</li><li>Internal Dual Power Supply</li><li>DAW Remote Function</li><li>Split mode</li><li>First-of-its-kind AI Assist Functions</li></ul><h3>Specifications</h3><ul><li>DM7<ul><li>Mixing Capacity: 120 Inputs, 48 MIX + 12 Matrix + 2 Stereo</li><li>Sampling Frequency<ul><li>External Clock Frequency: 48 kHz / 96 kHz ?200 ppm</li><li>Internal Clock Frequency: 48 kHz / 96 kHz</li></ul></li><li>Signal Delay: Less than 1.5 ms, Input to Omni Out @Fs=96 kHz<ul><li>Screen: 12.1&quot; multi-touch screen ? 2, 7&quot; multi-touch screen ? 1</li><li>Fader: 3.94&quot; touch-sensitive motorized fader ? 28</li><li>Power Requirements: 100-240 V, 50/60 Hz</li><li>Power Consumption: 240 W</li><li>Dimensions (W x H x D): 31.2&quot; ? 12.75&quot; ? 22.20&quot;</li><li>Weight: 50.7 lbs</li></ul></li><li>NC Value<ul><li>Fan Speed LOW: NC=15</li><li>Fan Speed HIGH: NC=25</li></ul></li><li>Operating Temperature Range: Min: 0?C, Max: 40?C</li><li>Storage Temperature Range: Min: ?20?C, Max: 60?C</li></ul></li><li>Software:<ul><li>DM7 Editor</li><li>DM7 StageMix</li><li>Console File Converter</li><li>MonitorMix</li><li>ProVisionaire Control/Touch</li></ul></li><li>CTL-DM7<ul><li>Fader: 3.94&quot; touch-sensitive motorized fader ? 2</li><li>Power Requirements<ul><li>AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type</li><li>EXT DC INPUT: DC 24 V?1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1</li><li>Power Consumption: 20 W</li></ul></li><li>Dimensions (W x H x D):<ul><li>DM7 CONTROL: 7.52&quot; ? 12.72&quot; ? 22.12&quot;</li><li>Linked with DM7: 38.3&quot; ? 12.75&quot; ? 22.2&quot;</li><li>Linked with DM7 COMPACT 25.51&quot; ? 12.75&quot; ? 22.2&quot;</li></ul></li><li>Weight: 15.43 lbs</li><li>NC Value</li><li>Fan Speed LOW: NC=20</li><li>Fan Speed HIGH: NC=30</li><li>Operating Temperature Range: Min: 0?C, Max: 40?C</li><li>Storage Temperature Range: Min: ?20?C, Max: 60?C</li></ul>
