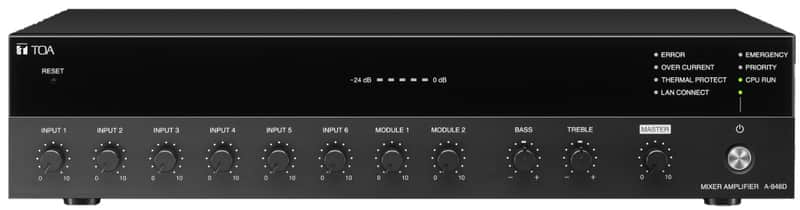

TOA A824D Digital Mixer Amplifier, 240W

<p>The A824D mixer-amplifier from TOA provides up to 240 watts of power across eight inputs to drive background and foreground music, paging, and noise masking applications. It can be run at 4 Ohms or drive a 70V system.</p><p>Control and monitoring are possible from anywhere, thanks to the A812D&#039;s web-based interface. View and update volume levels or verify amplifier status from your office location. Then with a quick check of the downloadable log files, you can verify the need to dispatch a technician. Saving time saves money and your peace of mind is worth even more.</p><p>Onboard DSP, a sleek new appearance, MOH (music on hold) output, two available 900 series module slots, plus TOA&#039;s legendary quality and reliability make this an ideal choice for new and existing systems. Mic inputs 1-4 have phantom power available and 5-6 feature priority audio ducking with depth control plus a stereo RCA record out!</p><h3>Applications</h3><ul><li>Retail</li><li>Office buildings</li><li>Entertainment complexes</li></ul><h3>Specifications</h3><ul><li>Power Source: 120 V AC, 60 Hz</li><li>Rated Output: 1W</li><li>Power Consumption: 317 W (rated output), 62 W (based on UL62368) 200 mA or less (when power switch is OFF)</li><li>Frequency Response: 50 Hz to 20 kHz &plusmn;3 dB (1/8 rated output)</li><li>Total Harmonic Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))</li><li>Tone Control: Bass: &plusmn;10 dB at 100 Hz, Treble: &plusmn;10 dB at 10 kHz</li><li>Signal to Noise Ratio: 88 dB or more (Master volume: min) 76 dB or more (Master volume: max) 55 dB or more (INPUT 1 to 6) (A-weighted)<ul><li>Inputs 1-2: -60 dB* (MIC)/-20 dB* (LINE) selectable, 600 &Omega;, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: MIC inputs are equipped with phantom power (24 V DC, ON/OFF switchable).</li><li>Inputs 3-4: -60 dB*, 600 &Omega;, electronically-balanced, removable terminal block (3.81 mm, 3 pins) Note: Equipped with phantom power (24 V DC, ON/OFF switchable).</li><li>Inputs 5-6: MIC/LINE selectable MIC: -60 dB* , 600 &Omega;, electronically-balanced, removable terminal block (3.81 mm, 3 pins) LINE: -20 dB*, 10 k&Omega;, unbalanced, RCA pin jack x 2</li><li>Module 1-2: -20 dB*, 10 k&Omega;</li></ul></li><li>Output<ul><li>Speaker: High impedance: 70 V line/21 &Omega;/Low impedance 4 to 16 &Omega; Low impedance 4 to 16 &Omega; selectable</li><li>REC: 0 dB *, 600 &Omega;, unbalanced, RCA pin jack x 2</li><li>PRE AMP: 0 dB *, 600 &Omega;, unbalanced, RCA pin jack</li></ul></li><li>Control Input<ul><li>4 channels, no-voltage make contact input, open voltage: 35 V DC or less, Short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)</li><li>Remote volume: No-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)</li></ul></li><li>Control Output<ul><li>Power remote: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)</li><li>Emergency out: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins) Indicators: LED level meter, Power indicator, Network connection confirmation indicator, Priority broadcast indicator, Emergency broadcast indicator, Thermal protection indicator, Over-current protection indicator, CPU running indicator, Error indicator</li></ul></li><li>Operating Temperature: -10 to +40 ?C (14 to 104 ?F)</li><li>Operating Humidity: 85 % RH or less (no condensation)</li><li>Finish<ul><li>Panel: ABS resign, black</li><li>Case: Surface-treated steel plate, black, paint</li></ul></li><li>Dimensions: 420 (w) x 96.1 (h) x 313.1 (d) mm or 16,54&quot; x 3.78&quot; x 12.33&quot;</li><li>Weight: 5.2 kg or 11.46 lb</li><li>Options:Input transformer: IT-450, Perforated panel: PF-013B</li></ul>
