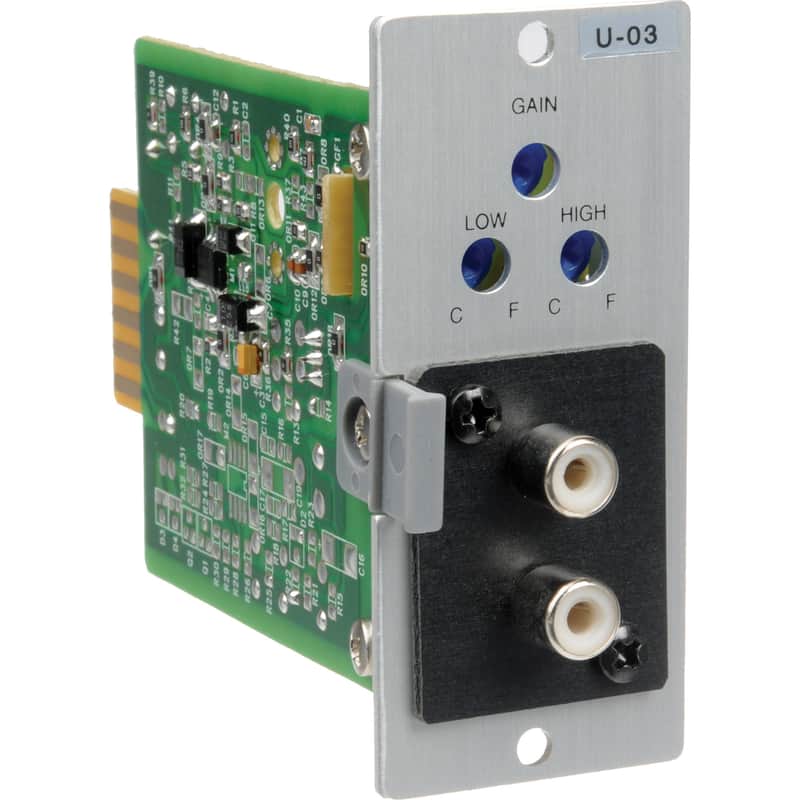

TOA U03R Unbalanced Line Input Module with High / Low-Cut Filters, Dual RCA Female Jacks

<p>For unbalanced, line level equipment such as AM / FM tuners, tape decks and CD players. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.</p><p>The U-O3R is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier.</p><p>It has a low-cut and a high-cut filter.</p><h3>Specifications</h3><ul><li>Power Source: 24V DC</li><li>Current Consumption: Under 8mA</li><li>Input Sensitivity (Rated Output 100mV ): 100 &mdash; 3,600mV (adjustable)</li><li>Low Cut Filter (100Hz ): -5 to -15dB</li><li>High Cut Filter (10kHz ): -7 to -13dB</li><li>Noise Output (20Hz &mdash; 20kHz BPF): Under 10uV</li><li>Distortion: Under 0.05%</li><li>Frequency Response: 20Hz &mdash; 20kHz</li><li>Input Connector: RCA pin jacks</li><li>Output Connector: 6P cord edge-connector</li><li>Dimensions: 35 (W) X 78 (H) X 88 (D)mm</li><li>Weight: 50g</li></ul>
