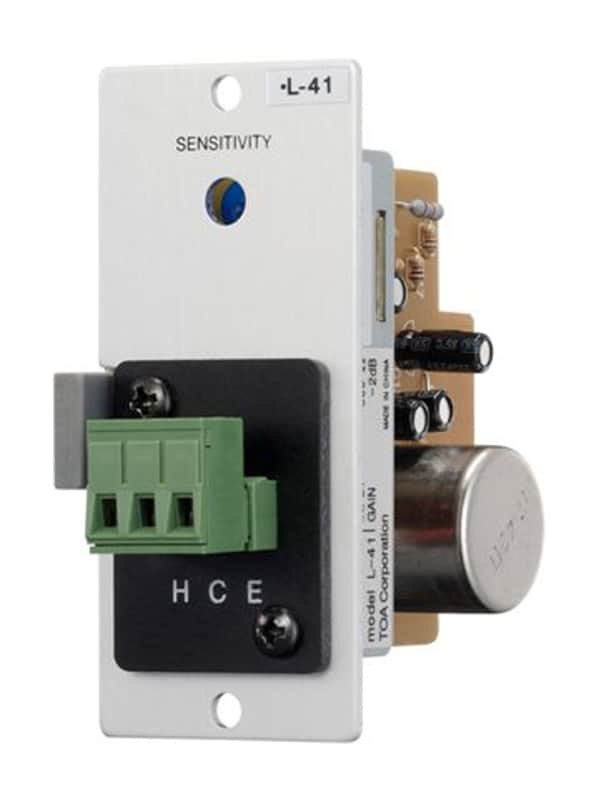

TOA L41S Line-Matching Input Module with Mute-Send for 900 Series Amplifiers, Removable Terminal Block

<p>The TOA L41S is for applications requiring 600 ohm line-matching. Signal at input terminals activates mute bus.</p><p></p><p>For Applications Requiring 600 ohm Line Matching. Transformer Isolation (600&Omega;) minimizes ground loop problems when connecting remote equipment (greater than 15 feet). Signal At Input Terminals Activates Both Mute Bus #1 and Mute Bus #2 Buses By Default (cut diode(s) to disconnect individual mute bus) Connector:removable terminal block</p><h3>Specifications:</h3><ul><li>Controls/Functions: Signal Activated Mute Sensitivity Control</li><li>Performance Input: 600tb</li><li>Input Impedance: 600&Omega;, balanced transformer-isolated</li><li>Input Sensitivity: -16dBu, min. -30dBu to activate mute function</li><li>Gain (Adjustable): -2dB (fixed)</li><li>Maximum Input: +20dB</li><li>Physical Connector: Removable Terminal Block</li><li></li><li>Faceplate Controls: Mute send sensitivity</li><li>PCB Controls: Mute bus selection</li></ul>
